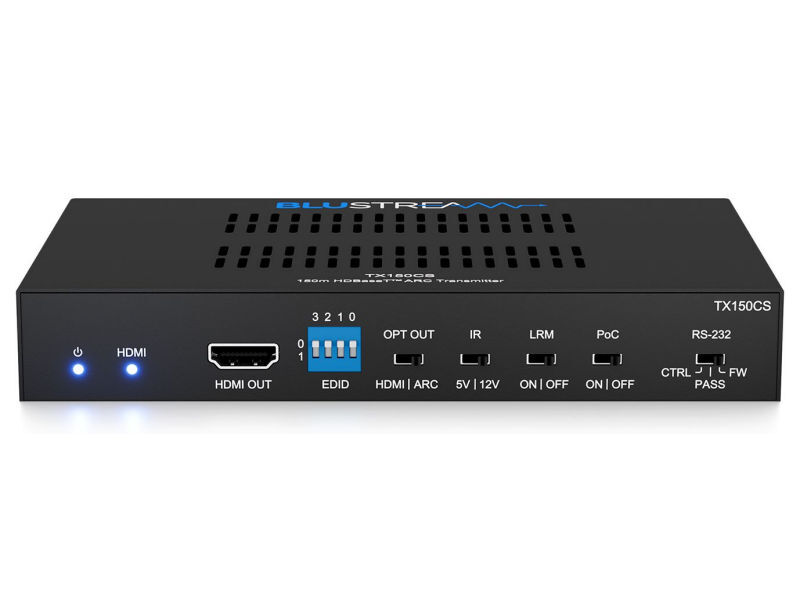

BLUSTREAM HDBaseT™ CSC Transmitter

The Platinum Range of HDBaseT™ products offer the very best in performance and flexibility. The TX150CS is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ transmitter utilising CSC technology. The TX150CS supports HDMI, Bi-directional IR and PoC up to lengths of 150m over a single CAT cable. The TX150CS also provides enhanced features including ARC via HDMI or optical (S/PDIF), RS-232 pass through and Ethernet pass through.Key Features:Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cableAdvanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDRSupports 4K 60Hz 4:4:4 UHD video up to 100mExtends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)Supports all industry standard video resolutions including VGA-WUXGA and 480i-4KHDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issuesSupports ARC (Audio Return Channel) from connected display via HDMI or optical (S/PDIF) digital inputs(when used with compatible Blustream RX150CS Receiver or PLA88CS Platinum matrix)Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmissionBi-directional 100Mbps Ethernet pass through when used with Blustream RX150CS Receiver or PLA88CS Platinum matrix solutionBi-directional RS-232 pass throughBi-directional IR from all input and output locationsSupports bi-directional PoC (Power over Cable) to power extender from either Matrix, transmitter or receiver endHDCP 2.2 supportSpecifications:Video Input Connectors: 1x HDMI Type A, femaleVideo Output Connectors: 1x HDBaseT™ RJ45, 1x HDMI Type A, female (loop)Audio Output Connectors: 1x Optical Toslink (S/PDIF), 1x 3.5mm L/R analogue audioRS-232 Port: 1x 3-pin Phoenix connectorEthernet Port: 1x RJ45 connectorIR Input Port: 1x 3.5mm stereo jackIR Output Port: 1x 3.5mm mono jackMounting Kit: IncludedPower Supply: 24V/1.25A DC, 4-pin DIN connector (not included)Casing Dimensions (W x D x H): 164mm x 100mm x 25mmShipping Weight: 0.6kgOperating Temperature: 32°F to 104°F (0°C to +40°C)Storage Temperature: -4°F to 140°F (-20°C to +60°C)
