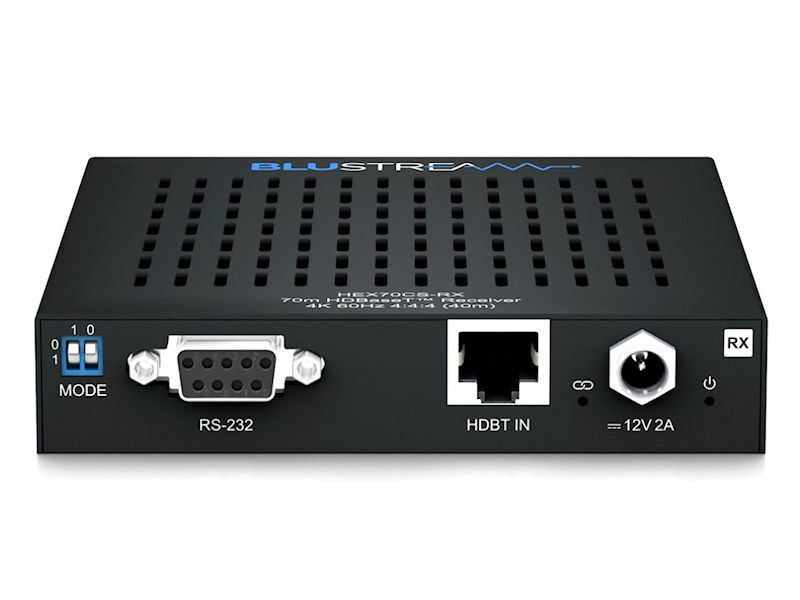

BLUSTREAM HDBaseT™ Extender Receiver

The Blustream HEX70CS-RX HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ receiver offers market leading features and outstanding value utilising CSC technology.The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 70m (4K 40m).The receiver features simultaneous analogue stereo and digital coax audio breakout.Key features:Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cableAdvanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDRSupports 4K60Hz 4:4:4 UHD video up to 40mExtends HDMI 1080p video up to 70mSupports all industry standard video resolutions including VGA-WUXGA and 480i-4KSupports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissionsHDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issuesHDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrentlySupports bi-directional RS-232 pass throughSupports bi-directional IR pass throughAdvanced EDID managementHDCP2.2 compliantSpecifications:Audio Output Connectors: 1 x RCA (SPDIF) & 2 x Analogue RCA (Left/Right)IR Output Ports: 1 x 3.5mm mono jackIR Input Ports: 1 x 3.5mm stereo jackRS-232 Serial Port: 1 x DB-9 femaleVideo Output Connectors: 1 x HDMI Type A, femaleVideo Input Connectors: 1 x HDBaseT™ RJ45 connectorPower Supply: 12V/2A DC, screw type connector (not supplied)Power Consumption: 5.6WUnit Dimensions (W x D x H): 113 x 124 x 22mm (without connections)Unit Dimensions (W x D x H): 113 x 138 x 22mm (with connections)Unit Weight: 0.35kg (excluding accessories)Operating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: -4°F to 140°F (-20°C to 60°C)Mounting Kit IncludedBox Contents:1x HEX70CS-RX1x Mounting Kit
