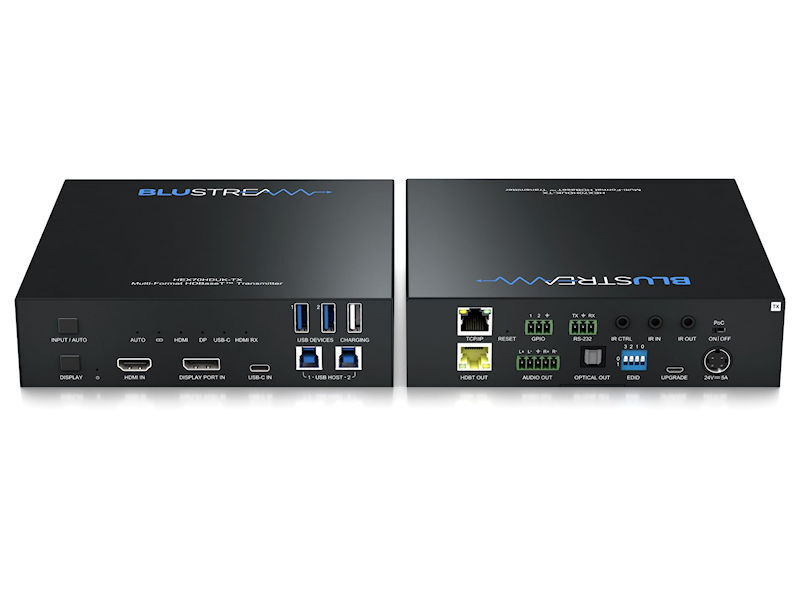

BLUSTREAM HDBaseT™ Extender SET

The Blustream HEX70HDUK-KIT extender set is an industry leading HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ multi-format solution utilising CSC technology to deliver HDMI, USB-C and DisplayPort at 4K to 40m (with 1080p up to 70m) over a single CAT cable.The HEX70HDUK-KIT provides enhanced features including local HDMI input on the HDBaseT™ receiver for additional source input, Web GUI for control and configuration, auto display control, audio breakout, and bi-directional IR / RS-232 pass-through.The HEX70HDUK-KIT features control via front panel, IR, RS-232 and TCP/IP, with advanced EDID and HDCP management.Key Features:Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cableAdvanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDRFeatures 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ Transmitter with manual or auto source selectionFeatures 1 x local HDMI input on the HDBaseT™ Receiver for connection of a source local to the display Supports 4K 60Hz 4:4:4 UHD video up to 40mExtends HDMI 1080p up to a distance of 70m over single CAT cable Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specificationsSupports USB Type C up to 4K UHD 60Hz 4:4:4 DP1.2 with 60W charging capability*Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4 DP1.2Features 2 x USB-Type A devices (RX - peripherals), 2 x USB-Type A devices (TX - peripherals) and 2 x USB Type-B (TX - host source specific) that support a combined data transmission bandwidth of up to 250MbpsUSB Type-A connections support charging of devices up to 500mA when there is an active connection to a Host deviceIndependent USB Type-A connection to support charging only of devices up to 5V 2AAudio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently**Bi-directional IR pass-through Auto display on/off feature allowing control of display at the HDBaseT™ Receiver via CEC or RS-232Web interface module for control and configuration of HEX70HDUK-KITControl via front panel, IR, RS-232 and TCP/IPSupports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver endAdvanced EDID ad HDCP management* USB-C video support is limited to 4K 60HZ 4:2:0 when charging feature is activated by the source device.** Analogue audio breakout supports 2ch PCM only.Specifications:HEX70HDUK-TX:Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x DisplayPort™Video Output Connectors: 1 x HDBaseT™ RJ45 connectorRS-232 Serial Port: 1 x 3-Pin Phoenix connectorTCP/IP Control: 1 x RJ45, femaleIR Input Ports: 2 x 3.5mm stereo jackIR Output Ports: 1 x 3.5mm mono jackUSB Ports: 3 x USB Type-A (1 x for charging only), 2 x USB Type-BEDID: 4-pin DIP switchProduct Upgrade: 1 x Micro USB, femaleLocal Power Input: 1 x 24V/5A 4-pin DIN connectorCasing Dimensions (W x H x D): 183mm x 44mm x 173mm HEX70HDUK-RX:Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector Video Output Connectors: 1 x HDMI Type A, 19-pin, femaleRS-232 Serial Port: 1 x 3-pin Phoenix connectorRelay Control: 2 x 3-pin Phoenix connectorIR Input Ports: 1 x 3.5mm stereo jackIR Output Ports: 1 x 3.5mm mono jackUSB Ports: 2 x USB Type-AEDID: 4-pin DIP switchProduct Upgrade: 1 x Micro USB, femaleLocal Power Input: 1 x 24V/5A 4-pin DIN connectorCasing Dimensions (W x H x D): 155mm x 24mm x 155mm Power Supply: 24V/5A 4-pin DIN connectorOperating Temperature: 32°F to 104°F (-5°C to +55°C)Storage Temperature: -4°F to 140°F (-25°C to +70°C)Box Contents:1 x HEX70HDUK-TX1 x HEX70HDUK-RX1 x 24V/5A DC power supply1 x USB-A to USB-B cable1 x IRE1 emitter1 x IRR receiver1 x RS-232 control cable2 x Mounting kit1 x Quick Reference Guide
