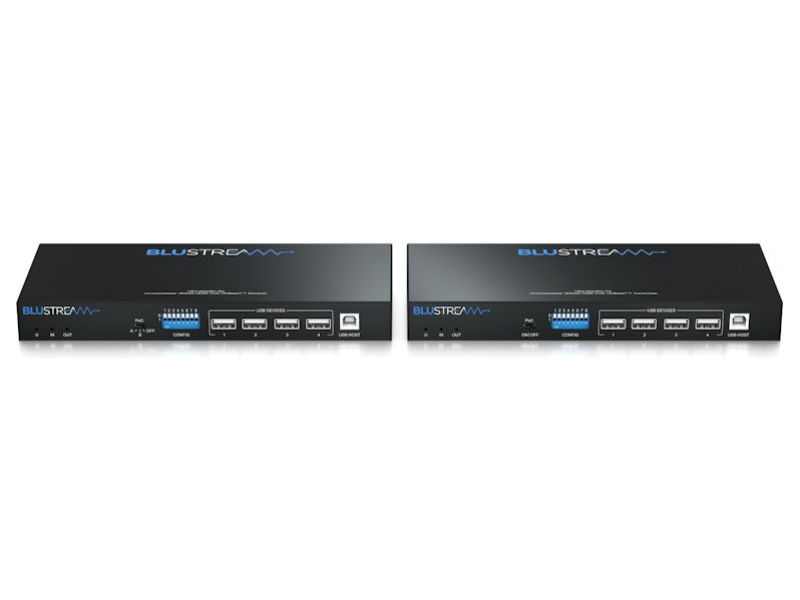

BLUSTREAM HDBaseT™ Extender SET HDMI 2.0

The Blustram HEX18GARC-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT™ technology.It supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.The HEX18GARC-KIT supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable. The KIT also provides enhanced features including KVM, eARC via HDMI, or ARC via HDMI or Optical (S/PDIF), and 1Gb Ethernet pass through.Key Features:Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cableSupports HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD videoSupports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby VisionSupports HDMI video distribution up to 100m*Features 1x HDMI loop-out on HEX18GARC-TX for integrating local displays or cascading to multiple devicesSupports all industry standard video resolutions including VGA-WUXGA and 480i-4KHDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility, and handshaking issuesSupports eARC (Enhanced Audio Return Channel) from display via HDMI, and standard ARC from HDMI and Optical (S/PDIF) digital inputsSupports audio return to HDMI (eARC compatible), optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmissionsFeatures USB 2.0 for KVM with speeds of up to 350MbpsBi-directional Ethernet (1Gb), IR, & RS-232 pass throughSupplied with Blustream IR receiver and emitterBi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver endSupport for HDCP 2.3, HDCP 2.2 and HDCP 1.4*Transmission distance is subject to video format, cable type and installation environment. The HDBaseT3 specification is based on using CAT6A F/UTP infrastructure or better. The use of CAT5e is not supported and CAT6 is not recommended due to potential bandwidth and performance issues.Specifications:HEX18GARC-TXVideo Input Connectors: 1 x HDMI Type A, femaleVideo Output Connectors: 1 x HDBaseT™ RJ45 connector, 1x HDMI Type A, femaleAudio Output Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1x Optical (S/PDIF)Ethernet port: 1 x RJ45 connectorRS-232 serial port: 1 x 3-pin Phoenix connectorUSB/KVM Port: 1 x USB Type-B, 4 x USB Type-AIR Input ports: 1 x 3.5mm stereo jackIR Output ports: 1 x 3.5mm mono jackCTRL: 8-PIN DIP switchHEX18GARC-RXVideo Input Connectors: 1 x HDBaseT™ RJ45 connector, 1x HDMI Type A, femaleVideo Output Connectors: 1 x HDMI Type A, female (reserved for future use)Audio Input Connectors: 1 x Optical (S/PDIF)Ethernet port: 1 x RJ45 connectorRS-232 serial port: 1 x 3-pin Phoenix connectorUSB/KVM Port: 1 x USB Type-B, 4 x USB Type-AIR Input ports: 1 x 3.5mm stereo jackIR Output ports: 1 x 3.5mm mono jackCTRL: 8-PIN DIP switch Casing Dimensions (W x D x H ): 220mm x 100mm x 25mm (TX/RX)Operating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: -4°F to 140°F (-20°C to 60°C)Mounting kits includedPower Supply: 1 x 24V/1.25A DCBox Contents:1 x HEX18GARC-TX Transmitter1 x HEX18GARC-RX Receiver1 x 24V/1.25A DC power supply1 x USB-A to USB-B cable1 x IRE1 receiver1 x IRR emitter4 x Mounting brackets1 x Quick Reference Guide
