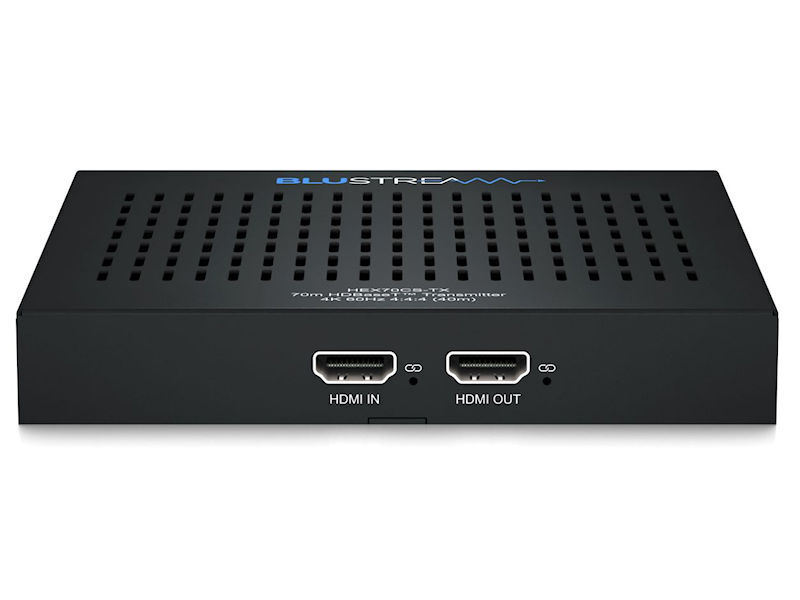

BLUSTREAM HDBaseT™ Extender Transmitter

The Blustream HEX70CS-TX HDMI 2.0 4K60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ transmitter offers market leading features and outstanding value utilising CSC technology with video down conversion.The product extends HDMI, bi-directional IR & RS-232, and bi-directional PoC (Power over Cable) up to lengths of 70m (4K 40m) to a compatible receiver or matrix.The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices.Key Features:Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cableAdvanced Colour Space Conversion (CSC)Supports HDMI 2.0 18Gbps specification including HDRSupports 4K 60Hz 4:4:4 UHD video up to 40mExtends HDMI 1080p video up to 70mSupports all industry standard video resolutions including VGA-WUXGA and 480i-4KSupports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specificationsFeatures 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devicesSupports bi-directional RS-232 pass-throughSupports bi-directional IR pass-throughSupports bi-directional IR pass-through with switchable5V/12V IR hardware supportHDCP 2.2 supportSpecifications:Video Input Connectors: 1 x HDMI Type A, femaleVideo Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A femaleRS-232 Serial Port: 1 x DB-9 femaleIR Input Ports: 1 x 3.5mm stereo jackIR Output Ports: 1 x 3.5mm mono jackEDID DIP Switch: 4-pinPower Supply: 12V/2A DC, screw type connectorPower Consumption: 12.7WTransmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)Ind. Extender Weight: 0.35kg (excluding accessories)Operating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: -4°F to 140°F (-20°C to 60°C)Mounting Kit IncludedBox Contents:1 x HEX70CS-TX1 x Mounting Kit
