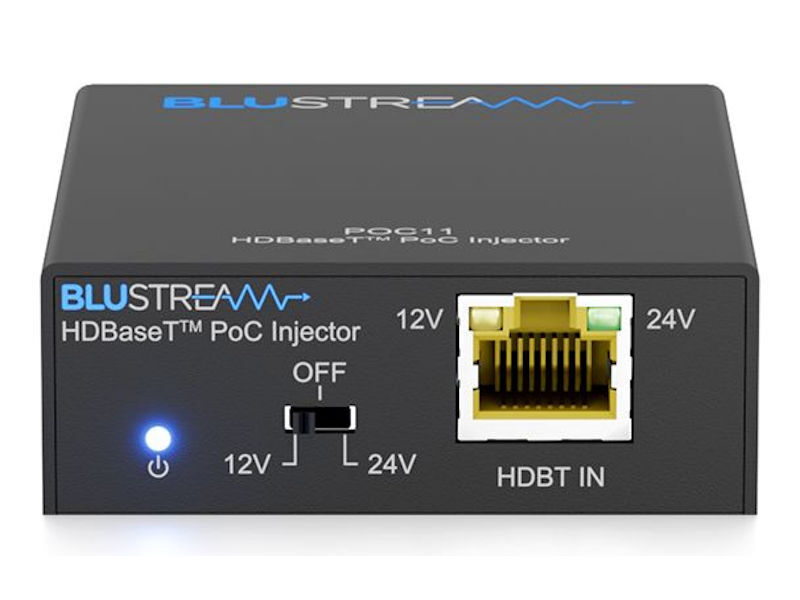

BLUSTREAM HDBaseT™ PoC Injector

The POC11 HDBaseT™ PoC injector is designed to send remote power to Blustream HDBaseT products that operate using Power over Cable. When placed within an HDBaseT Transmission line, it allows a Blustream HDBaseT Transmitter to be remotely powered via selectable 12V or 24V DC.Key Features:In-line PoC (Power over Cable) injector to power Blustream HDBaseT Transmitter productsCompatible with all Blustream HDBaseT™ video solutions (HDBaseT spec 1.0, 2.0 and 3.0)Supports 18Gbps 4K signals, multi-channel audio formats, and HDCP 2.2Supports up to 100m cable distance *Selectable voltage between 12V or 24V* Cable distance subject to location of POC11, and Blustream HDBaseT product being installed. POC11 to TX distance max 30mtrs. POC11 to RX distance max 70mtrs. Please refer to “PoC Distance Limitations” section for further details** Please note, the POC11 is designed for use with Blustream products and may not work with other HDBaseT extenders on the marketSpecifications:Video Inputs: 1 x HDBaseT™ RJ45 connectionVideo Outputs: 1 x HDBaseT™ RJ45 connectionVoltage Selection: 1 x 3-step switchCasing Dimensions (W x H x D): 65mm x 80mm x 24mmShipping Weight: 0.5kgOperating Temperature: 32°F to 104°F (0°C to +40°C)Storage Temperature: -4°F to 140°F (-20°C to +60°C)Power Supply: 24V/1.25A DC 4-pin DIN
