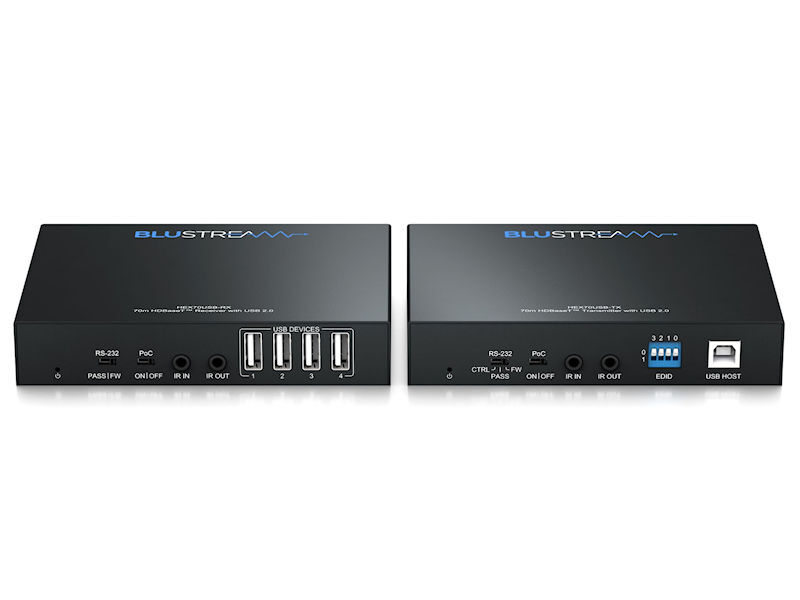

BLUSTREAM HDBaseT™ USB Extender SET

The Blustream HEX70USB-KIT 4K HDBaseT™ USB 2.0 extender set offers the very best in performance and flexibility, delivering HDMI to lengths of 70m (4K 60Hz 4:2:0 to 40m), USB 2.0 extension, bi-directional IR and RS-232, HDMI audio breakout, bi-directional PoC, and advanced EDID management. HDCP2.2 compliant.Key Features:Advanced HDBaseT™ technology offering uncompressed video and audio with zero latencyExtends HDMI 1080p up to a distance of 70m over a single CAT cableSupports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)HEX70USB-KIT features 4x USB Type-A devices (RX - peripherals) and 1x USB Type-B (TX - host) that support a combined data transmission bandwidth of up to 280MbpsUSB Type-A connections support 5V 500mA output per portSupports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specificationsBi-directional IR pass-throughBi-directional RS-232 pass-throughSupplied with Blustream IR receiver and emitterSupports bi-directional PoC (Power over Cable) to power extenders from either Transmitter or Receiver endHDCP 2.2 compliant with advanced EDID managementHDMI audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrentlySpecifications:HEX70USB-TXVideo Input Connectors: 1 x HDMI Type A, 19-pin, femaleVideo Output Connectors: 1 x HDBaseT™ RJ45 connectorRS-232 serial port: 1 x 3-pin Phoenix connectorUSB/KVM Port: 1 x USB Type-B (Host)IR Input ports: 1 x 3.5mm stereo jackIR Output ports: 1 x 3.5mm mono jackHEX70USB-RXVideo Input Connectors: 1 x HDBaseT™ RJ45 connectorVideo Output Connectors: 1 x HDMI Type A, 19-pin, femaleAudio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audioRS-232 serial port: 1 x 3-pin Phoenix connectorUSB/KVM Port: 4 x USB Type-A (Peripherals)IR Input ports: 1 x 3.5mm stereo jackIR Output ports: 1 x 3.5mm mono jackCasing Dimensions (W x D x H ): 135mm x 105mm x 25mm (TX/RX)Operating Temperature: 32°F to 104°F (-5°C to +55°C)Storage Temperature: -4°F to 140°F (-25°C to +70°C)Power Supply: 24V/1.25A DC, 4-pin DIN connectorBox Contents:1 x HEX70USB-TX1 x HEX70USB-RX1 x 24V/1.25A DC power supply1 x USB-A to USB-B cable1 x IRE1 emitter1 x IRR receiver1 x Serial Cable - DB9 to 3-pin Phoenix connector1 x 3-pin Phoenix connector2 x Mounting kit
