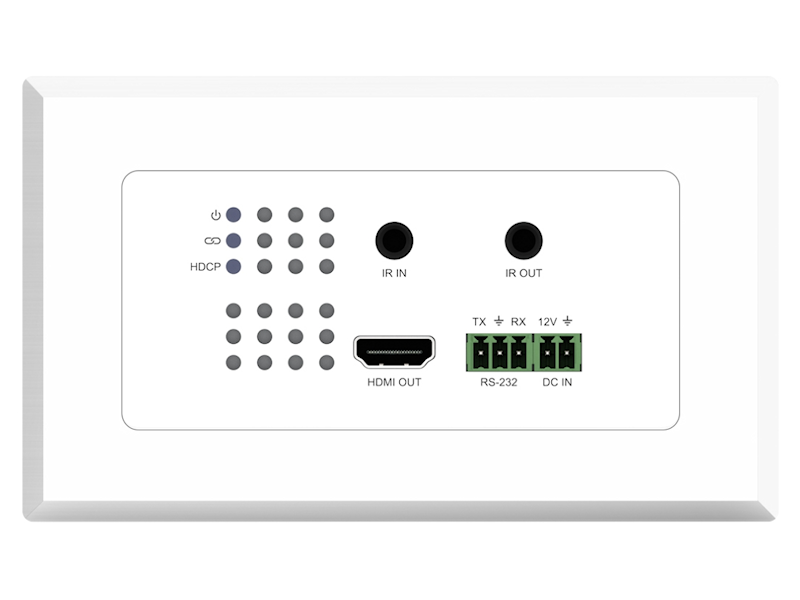

BLUSTREAM HDBaseT™ Wall Plate RX WHITE

The HEX11WPW-RX HDMI Wall Plate HDBaseT™ receiver is a 4K solution designed to receive HDMI signals up to 70m at 1080p (40m at 4K 60Hz 4:2:0).The HEX11WPW-RX has been designed to work with all Blustream HDBaseT™ transmitter and matrix solutions, be installed in both UK and European backboxes, and can be powered locally or from compatible Blustream HDBaseT™ products.Key Features:Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cableSupports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0) Extends HDMI at 1080p up to a distance of 70mSupports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmissionSupports CEC and RS-232 pass throughSupports bi-directional IR pass-through to compatible HDBaseT™ deviceSupports 12V-48V PoC from compatible Blustream HDBaseT™ transmitter / matrix products Compatible with all Blustream HDBaseT™ transmitter / matrix products*Magnetic faceplate surround allowing both UK & EU backbox compatibilityHDCP 2.2 supportSpecifications:Video Input Connectors: 1 x HDBaseT™ RJ45 connectorVideo Output Connectors: 1 x HDMI Type A, 19-pin, femaleRS-232 Serial Port: 1 x 3-pin phoenix connectorIR Input Ports: 1 x 3.5mm stereo jackIR Output Ports: 1 x 3.5mm mono jackLocal Power Input: 1 x 2-pin phoenix connectorCasing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mmBackbox Mounting Depth: 40mm (minimum) - backbox not suppliedShipping Weight: 0.7kgOperating Temperature: 32°F to 104°F (-5°C to +55°C)Storage Temperature: -4°F to 140°F (-25°C to +70°C)Power Supply: 12V/1A DC
