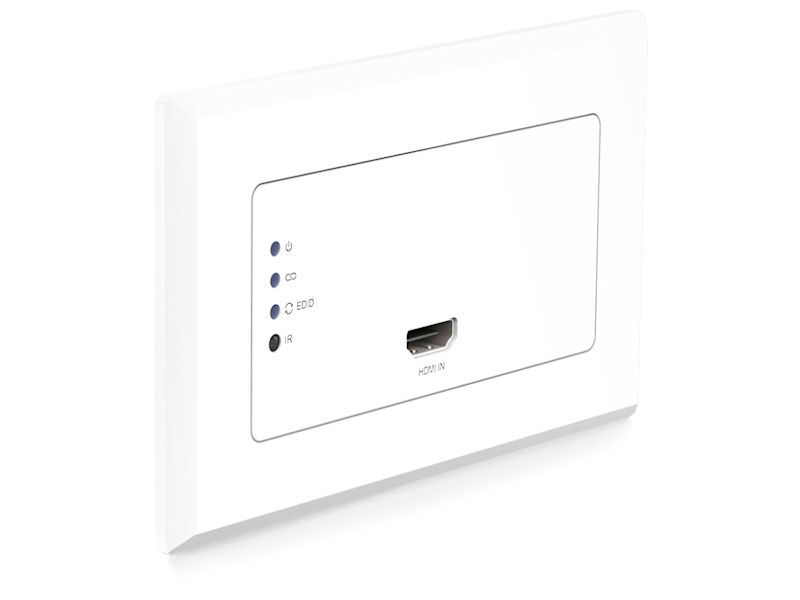

BLUSTREAM HDBaseT™ Wall Plate TX WHITE

The Blustream HEX11WPW-TX HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m 4K 60Hz 4:2:0).The HEX11WPW-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, can be installed in both UK and European back boxes, and can be powered locally or from compatible Blustream HDBaseT™ products.Key Features:Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cableSupports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)Extends HDMI at 1080p up to a distance of 70mSmart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibilitySupports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmissionSupports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix productsBi-directional RS-232 pass-throughSupports IR pass-through to HDBaseT™ deviceCompatible with all Blustream HDBaseT™ receiver / matrix products*White magnetic faceplate surround allowing for both UK & EU backbox compatibilityHDCP 2.2 support*When the HEX11WPW-TX is powered locally, PoC can be used to power a compatible Blustream receiver. HPD (Hot Plug Detect) is only active when an HDMI source device is connected to the HEX11WPW-TX.**Technical performance is subject to the features supported on the connected HDBaseT™ device.Specifications:Video Input Connectors: 1 x HDMI Type A, 19-pin, femaleVideo Output Connectors: 1 x HDBaseT™ RJ45 connectorRS-232 Serial Port: 1 x 3-pin Phoenix connectorIR Input Port: 1 x 3-pin Phoenix connectorLocal Power Input: 1 x 2-pin Phoenix connectorModule Dimensions (W x H x D): 136mm x 76mm x 44mm (w/o faceplate)Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mmCut Out Dimensions (W x H x D): 87mm x 49mm x 39mmMounting Hole Spacing: UK 121mm CTC, EU 60mm CTCBackbox Mounting Depth: 40mm (minimum), 47mm (recommended), UK or EU double gangShipping Weight: 1.0KgOperating Temperature: 32°F to 104°F (-5°C to +55°C)Storage Temperature: -4°F to 140°F (-25°C to +70°C)Power Supply: 12V/1A DCBox Contents:1 x HEX11WPW-TX1 x 12V/1A DC Power Supply1 x Magnetic Faceplate1 x Quick Reference Guide
