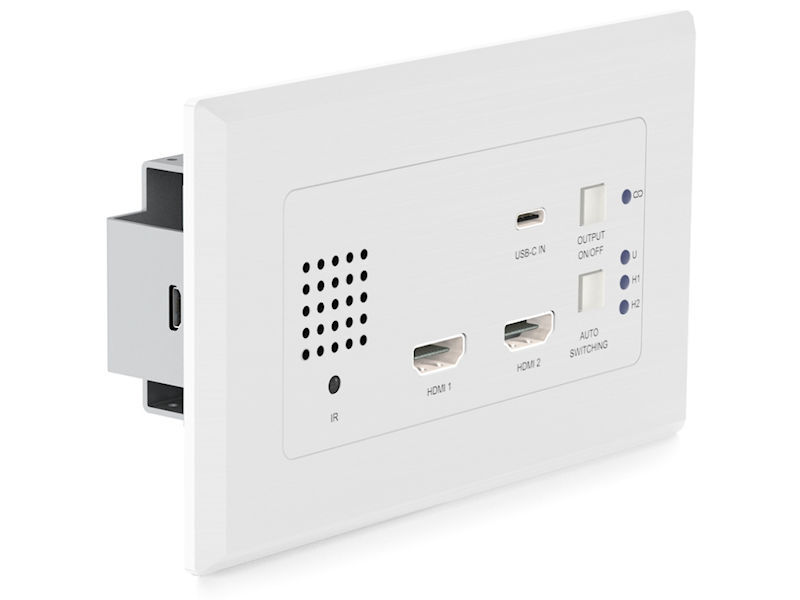

BLUSTREAM HDBaseT™ Wall Plate TX WHITE

The Blustream HEX31WPW-TX HDMI/USB-C wall plate HDBaseT™ Transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m 4K 60Hz 4:2:0).The HEX31WPW-TX features both manual or automated source selection and includes display on / off control via CEC, RS-232 and IR (via compatible HDBaseT™ receivers / Matrix).The HEX31WPW-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT™ products.Key Features:Features 2 x HDMI & 1x USB-C inputs with manual / auto source selectionAdvanced HDBaseT™ technology offering distribution of video and audio over a single CAT cableSupports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0) Extends HDMI at 1080p up to a distance of 70mSupports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmissionInput selection via front panel, IR or RS-232Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ receiverSupports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products Bi-directional RS-232 pass throughSupports IR pass-through to HDBaseT™ deviceCompatible with all Blustream HDBaseT™ receiver / matrix productsMagnetic faceplate surround allowing both UK & EU back box compatibilityHDCP 2.2 support*Technical performance is subject to the features supported on the connected HDBaseT™ device. ** Please note: The USB-C input port on this unit does not provide PD charging to devices connected for video distribution.Specifications:Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 1 x USB-C Type CVideo Output Connectors: 1 x HDBaseT™ RJ45 connectorRS-232 Serial Port: 1 x 3-Pin Phoenix connectorIR Input Port: 1 x 3-Pin Phoenix connectorProduct Upgrade: 1 x Micro USB femaleLocal Power Input: 1 x 2-Pin Phoenix connectorCasing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)Casing Dimensions (W x H x D): 146mm x 86mm x 44mm (with faceplate)Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mmBackbox Housed Unit Dimensions (W x H x D): 109mm x 49mm x 35mm (part of unit housed inside backbox)Backbox Mounting Depth: 40mm (minimum) - backbox not suppliedOperating Temperature: 32°F to 104°F (-5°C to +55°C)Storage Temperature: -4°F to 140°F (-25°C to +70°C)Power Supply: 12V/1A DCBox Contents:1 x HEX31WPW-TX1 x 12V/1A DC Power Supply1 x Magnetic Faceplate1 x RS-232 Control Cable1 x Quick Reference Guide
