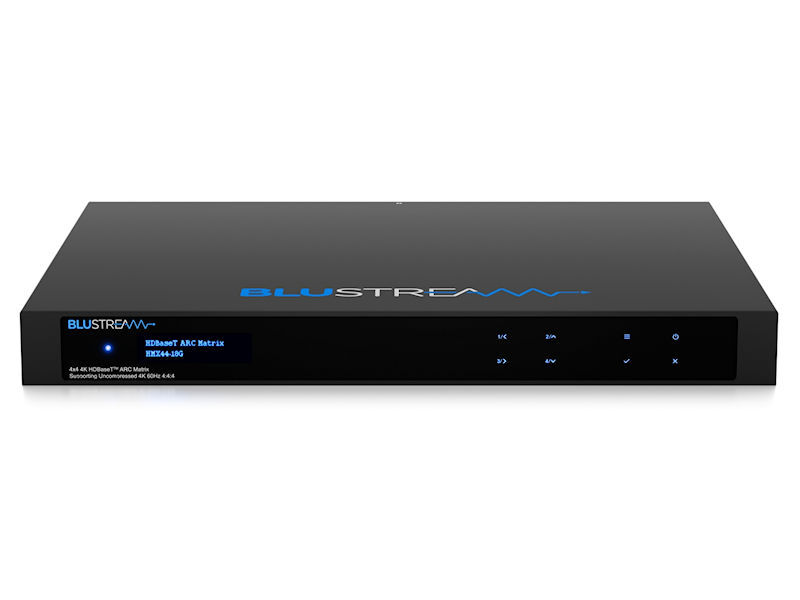

BLUSTREAM HDBaseT3™ 4x4 AV Matrix KIT

The HMX44-18G Matrix is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising HDBaseT3™ technology to deliver HDMI, Bi-directional IR & RS-232, ARC, 1Gb Ethernet, and PoC up to lengths of 100m over a single CAT6A cable.The HMX44-18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ resulting in the ultimate in picture quality for your critical viewing areas.The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video smart scaling on HDBaseT™ outputs, and an independent 14x4 audio matrix, and ARC. The HMX44-18G includes an in-built web browser interface module for control and configuration of the Matrix, and RS-232, IR and 1Gb Ethernet pass through to enable seamless 3rd party control integration.Key Features:Advanced uncompressed, unconverted, HDMI over HDBaseT3™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cableFeatures 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputsOutput 1 features a simultaneous HDMI and HDBaseT™ outputSupports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*Supports distribution of the latest HDR resolutions including HDR10/10+14x4 Audio Matrix independently controllable from video. Audio source inputs include:- 4 x audio breakout from HDMI source inputs- 4 x audio breakout from zone outputs- 4 x audio return from zone outputs*- 1 x optical and 1x analogue audio inputSupports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specificationsIntegrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)Web interface module for control and configuration of the MatrixSupports bi-directional IR and RS-232 on all HDBaseT™ outputsControl via front panel, IR, iOS / Android App, RS-232 and TCP/IPSupports PoC (Power over Cable) to power the supplied HDBaseT™ receiversAdvanced EDID management and HDCP 2.3 compliantSupplied with 4 x RX18G HDBaseT™ Receivers* Transmission distance is subject to video format, cable type and installation environment.Specifications:Video Input Connectors: 4 x HDMI Type A, 19-pin, femaleVideo Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connectorsAudio Input Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1 x Optical (S/PDIF)Audio Output Connectors: 4 x Analogue audio L/R (3.5mm stereo Jack), 4 x Optical (S/PDIF)RS-232 Serial Port: 5 x 3-pin phoenix connectorTCP/IP Control Port: 1 x RJ45, femaleEthernet Passthrough Port: 1 x RJ45, femaleIR Input Ports: 6 x 3.5mm stereo jackIR Output Ports: 5 x 3.5mm mono jackProduct Upgrade Port: 1 x Micro USB, femaleRack Mountable: 1U rack height, rack ears includedCasing Dimensions (W x H x D): 436mm x 360mm x 44mm (without feet)Operating Temperature: 23°F to 131°F (-5°C to +55°C)Storage Temperature: -13°F to 158°F (-25°C to +70°C)Power Supply: Internal 100-240V AC • HDBaseT Power Output: 24V DC 0.75A per portBox Content:1 x HMX44-18G4 x RX18G1 x Rack mounting kit1 x Remote control4 x IR emitters5 x IR receivers1 x Serial Cable - DB9 to 3-pin phoenix connector1 x IR Control Cable - 3.5mm-3.5mm CableIEC Power Cable(s)1 x Quick Reference Guide
