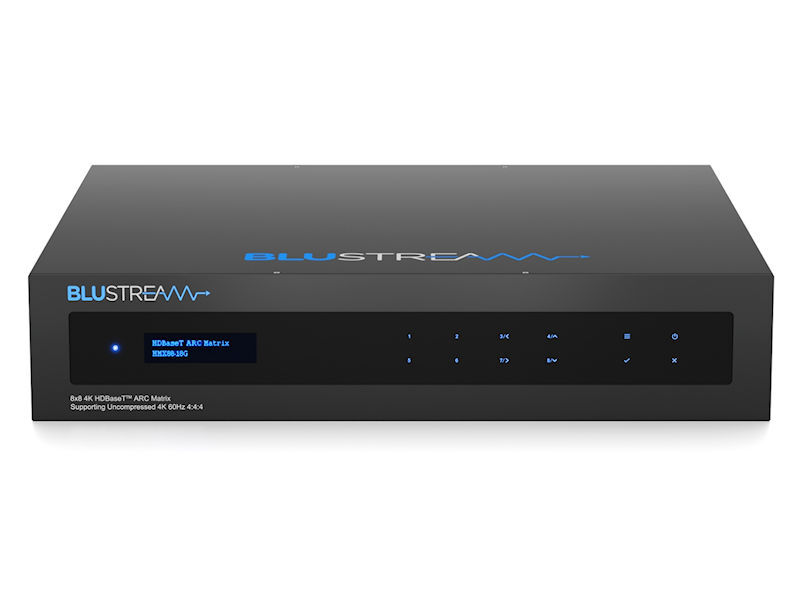

BLUSTREAM HDBaseT3™ 8x8 AV Matrix

The Blustream HMX88-18G Matrix is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising HDBaseT3™ technology to deliver HDMI, Bi-directional IR & RS-232, ARC, 1Gb Ethernet, and PoC up to lengths of 100m over a single CAT6A cable.The HMX88-18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ resulting in the ultimate in picture quality for your critical viewing areas.The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on outputs 1 & 2, video smart scaling on HDBaseT outputs, and an independent 26x8 audio matrix and ARC. The HMX88-18G includes an in-built web browser interface module for control and configuration of the Matrix, and RS-232, IR and Ethernet pass through to enable seamless 3rd party control integration.Key Features:Advanced uncompressed, unconverted, HDMI over HDBaseT3™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cableFeatures 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputsOutputs 1 & 2 feature simultaneous HDMI and HDBaseT™ outputsSupports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*Supports distribution of the latest HDR resolutions including HDR10/10+26x8 Audio Matrix independently controllable from video. Audio source inputs include:- 8 x audio breakout from HDMI source inputs- 8 x audio breakout from zone outputs- 8 x audio return from zone outputs*- 1 x Optical and 1x Analogue audio inputSupports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specificationsIntegrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)Web interface module for control and configuration of the MatrixSupports bi-directional IR and RS-232 on all HDBaseT™ outputsControl via front panel, IR, iOS / Android App, RS-232 and TCP/IPSupports PoC (Power over Cable) to power compatible HDBaseT™ receiversAdvanced EDID management and HDCP 2.3 compliant* Transmission distance is subject to video format, cable type and installation environment.* The HDBaseT3™ specification is based on using CAT6A F/UTP infrastructure or better. The use of CAT5e is not supported and CAT6 is not recommended due to potential bandwidth and performance issues.** ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G receivers only.Specifications:Video Input Connectors: 8 x HDMI Type A, 19-pin, femaleVideo Output Connectors: 2 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connectorsAudio Input Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1 x Optical (S/PDIF)Audio Output Connectors: 8 x Analogue audio L/R (3.5mm stereo Jack), 8 x Optical (S/PDIF)RS-232 Serial Port: 9 x 3-pin phoenix connectorTCP/IP Control Port: 1 x RJ45, femaleEthernet Passthrough Port: 1 x RJ45, femaleIR Input Ports: 10 x 3.5mm stereo jackIR Output Ports: 9 x 3.5mm mono jackProduct Upgrade Port: 1 x Micro USB, femaleRack Mountable: 2U rack height, rack ears includedCasing Dimensions (W x H x D): 436mm x 88mm x 400mm (without feet)Operating Temperature: 23°F to 131°F (-5°C to +55°C)Storage Temperature: -13°F to 158°F (-25°C to +70°C)Power Supply: Internal 100-240V ACHDBaseT Power Output: 24V DC 0.75A per portBox Content:1 x HMX88-18G1 x Rack mounting kit1 x Remote control8 x IR emitters9 x IR receivers1 x Serial Cable - DB9 to 3-pin phoenix connector1 x IR Control Cable - 3.5mm-3.5mm CableIEC Power Cable(s)1 x Quick Reference Guide
