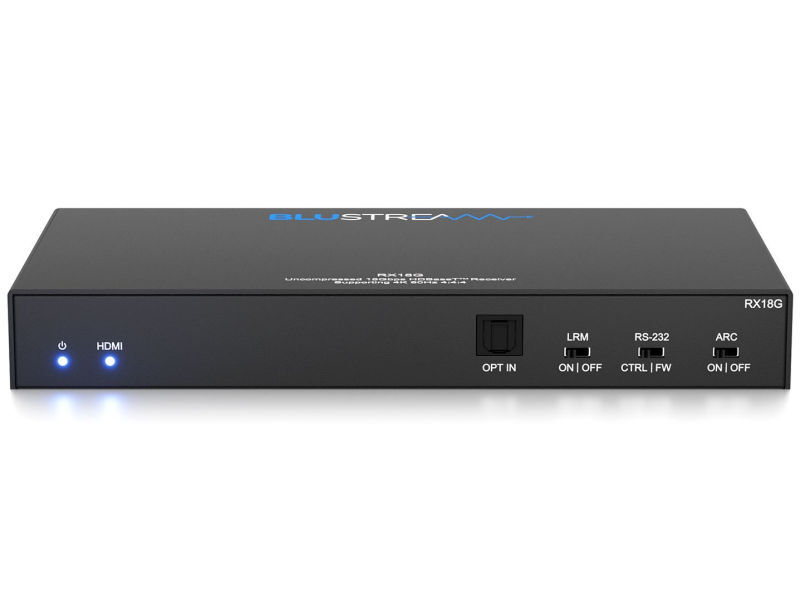

BLUSTREAM HDBaseT3™ Receiver

The RX18G receiver is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT™ technology.The RX18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.The RX18G supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable while also providing enhanced features including ARC via HDMI or Optical (S/PDIF), and 1Gb Ethernet pass through.Key Features:Advanced HDBaseT™ spec 3.0 technology offering distribution of video and audio over a single CAT6A cableSupports uncompressed HDMI2.0 18Gbps 4K 60Hz 4:4:4 specification including HDRExtends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)Supports all industry standard video resolutions including VGA-WUXGA and 480i-4KSupports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with compatible Blustream matrix)Bi-directional 1Gb Ethernet pass through when used with compatible Blustream matrix solutionSupports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissionBi-directional RS-232 pass-throughSupports bi-directional IR pass-through from compatible Blustream matrixSupports PoC (Power over Cable) from compatible Blustream matrixHDCP 2.3 supportRecommended receiver to be used with Blustream HMX88-18G and HMX44-18G matrix*Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cablingSpecifications:Video Input Connectors: 1 x HDBaseT™ RJ45 connectorVideo Output Connectors: 1 x HDMI Type A, femaleRS232 Input Port: 1 x 3-pin Phoenix connectorAudio Output Connectors: 1 x Analogue audio L/R (3.5mm stereo jack), 1 x Optical (S/PDIF)Audio Input Connectors: 1 x Optical (S/PDIF)Ethernet Port: 1 x RJ45 connectorIR Input Port: 1 x 3.5mm stereo jackIR Output Port: 1 x 3.5mm mono jackMounting Kit includedCasing Dimensions (W x H x D): 190 x 100 x 25mmDimensions Including Connections (W x H x D): 190 x 108 x 25mmPower Supply: 24V/1.25A DC, 4-pin DINShipping Weight: 1.0KgOperating Temperature: 32°F to 104°F (-5°C to +55°C)Storage Temperature: -4°F to 140°F (-25°C to +70°C)
