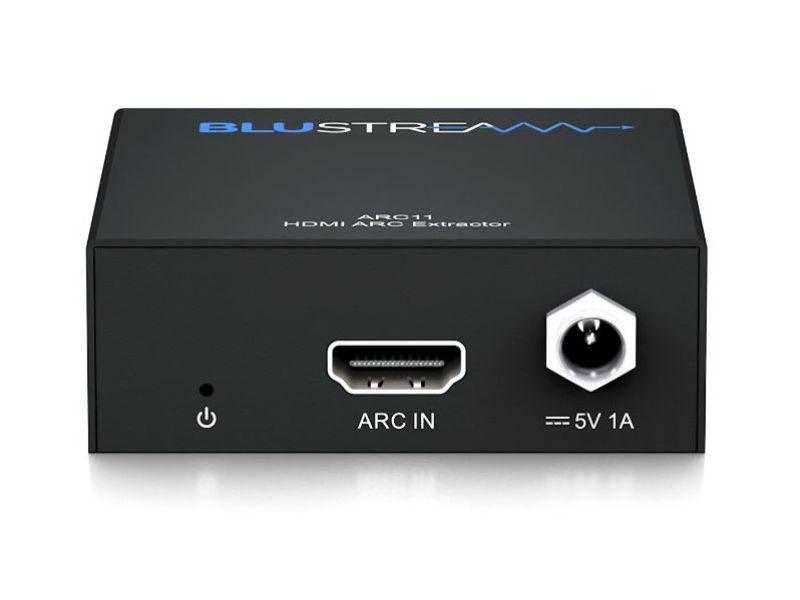

BLUSTREAM HDMI ARC Extractor

The Blustream ARC11 has been designed to extract audio from the HDMI ARC (Audio Return Channel) of a display.Featuring both an analogue audio, and optical audio output, it can extract the embedded ARC audio information for use within a multi room audio distribution system.Key Features:Extracts audio from the Audio Return Channel of a HDMI signal*Features analogue audio breakout of 2ch PCM audio signals, where source audio is 2ch PCM Supports up to 192kHz sample rates at 24bit depth Features optical audio breakout of multi-channel and 2ch audio formats Supports pass through of 5.1 surround sound to Optical or 2 channel to analogue and optical outputs*Please note: the output of the ARC11 is a fixed line, and cannot be controlled via CEC volume commands from the displaySpecifications:Audio Input Connectors: 1 x HDMI Type A, 19-pin, femaleAudio Output Connectors: 2 x RCA analogue left/right, 1 x Toslink optical outputDimensions (W x H x D): 70mm x 25mm x 73mmOperating Temperature: 32°F to 104°F (-5°C to +55°C)Storage Temperature: -4°F to 140°F (-25°C to +70°C)Power Supply: 5V/1A DC USBBox Contents:1 x ARC11 1 x 5V/1A DC USB Power Supply1 x Mounting Kit 1 x Quick Reference Guide
