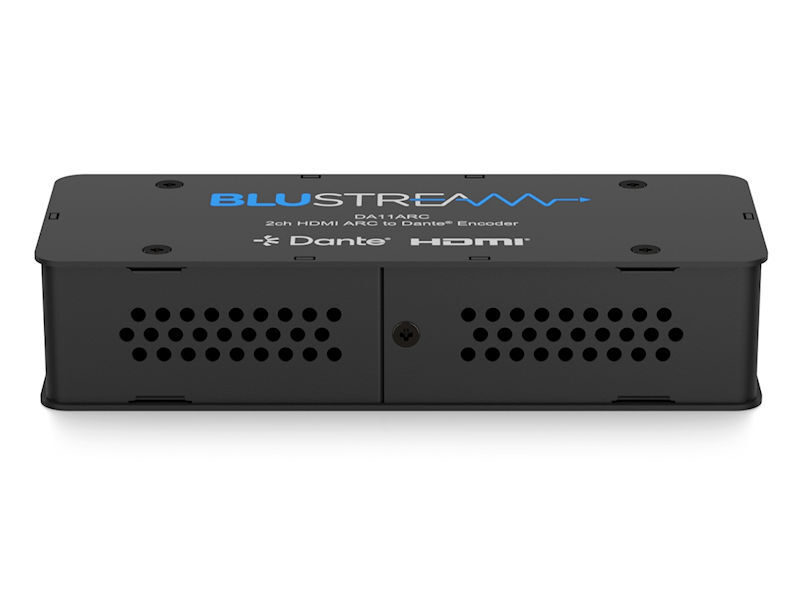

BLUSTREAM HDMI ARC to Dante® Encoder

The Blustream DA11ARC has been designed to encode HDMI ARC (Audio Return Channel) 2ch audio to a Dante® digital signal.The DA11ARC is a plug & play device that is powered using PoE (Power Over Ethernet). The DA11ARC also supports AES67 RTP audio transport.Key Features:Encodes HDMI ARC (Audio Return Channel) 2ch audio to a Dante® digital signalSupports: 44.1, 48, & 96kHz sample rates @ 24 BitConfigurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® ControllerInput sensitivity/volume control adjustable via CEC, web GUI or APISupports AES67 RTP audio transportFeatures Class 0 802.3af PoE for powering of product from any PoE switchLocal 12v power supply input for when network switch does not support PoE (PS121PH power supply sold separately)Please Note: The DA11ARC will only decode a 2ch HDMI ARC signal and is not compatible with multi-channel HDMI audio codecs.Specifications:Casing Dimensions (L x W x H): 120mm x 47mm x 26mmOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)Power Supply: Class 0 IEEE 802.3af POE PD or 12V/1A DC 2-pin Phoenix connectorAudio Output Connector: 1 x RJ45, female (100 Mbps Dante® network)Audio Input Connector: 1 x HDMI, female (2ch ARC audio only)Box Contents:1 x DA11ARC1 x Quick Reference Guide
