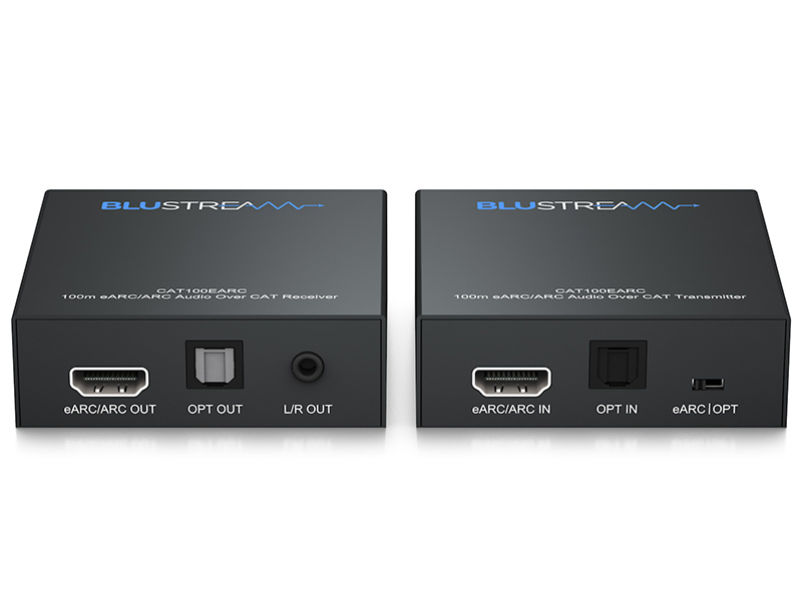

BLUSTREAM HDMI eARC/ARC Audio over CAT

The Blustream CAT100EARC Audio over CAT cable extender transmits HDMI eARC/ARC or optical digital audio signals up to a distance of 200m (eARC/ARC signals up to 100m).This plug and play device supports CEC pass-through when HDMI eARC/ARC audio is selected and features a built in DAC to convert either of the inputs to a stereo left / right audio output.Key Features:Extend either eARC/ARC or optical digital audio signals over a single CAT cable*CAT100EARC supports eARC/ARC distribution distances of up to 100mCAT100EARC supports Optical audio distribution distances of up to 200mBuilt in DAC (Digital to Analogue audio Converter) converts either HDMI eARC/ARC or optical digital to analogue stereo left/right audio output (2ch PCM only)*Supports CEC pass-through when HDMI eARC/ARC mode selectedSupports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specificationsBi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver*Selection between HDMI eARC/ARC or Optical digital audio via dipswitch on the TXSpecifications:CAT100EARC-TX:Audio Input Connectors: 1x Optical (S/PDIF) & 1x HDMI Type AOutput Connectors: 1x RJ45Firmware Upgrade: 1x Micro-USBDimensions (W x H x D): 74mm x 80mm x 24mmCAT100EARC-RXInput Connectors: 1x RJ45 & 5V/1A DCOutput Connectors: 1x Optical (S/PDIF), 1x HDMI Type A & 1x Analogue audio L/R (3.5mm stereo Jack)Firmware Upgrade: 1x Micro-USBDimensions (W x H x D): 74mm x 80mm x 24mm Operating Temperature: 32°F to 104°F (-5°C to +55°C)Storage Temperature : -4°F to 140°F (-25°C to +70°C)Power Supply: 24V/1.25A DCBox Contents:1 x CAT100EARC-TX1 x CAT100EARC-RX1 x 24V/1.25A DC power supply1 x Mounting kit1 x Quick Reference Guide
