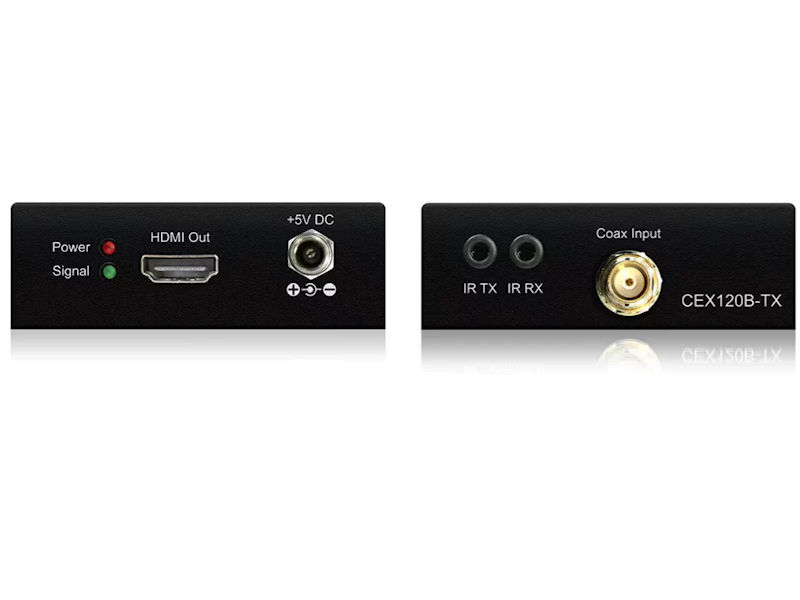

BLUSTREAM HDMI Over Coax Extender SET

The Blustream CEX120B-KIT HDMI extender set offers HDMI distribution over a single Coaxial cable.The product delivers HDMI & Bi-directional IR up to lengths of 120m @ 1080p.Key Features: Extends HDMI 1080p up to a distances of 120m over a single Coaxial cableSupports the following video resolutions: 480i, 576i, 720p, 1080i and 1080pSupports Bi-directional IR from input and output locationsSupports audio formats up to 7.1chSupplied with Blustream IR receiver and emitterRequires local power at both transmitter and receiverSmart EDID managementHDCP 1.4 compliant Specifications: CEX120B-TX:Video Input Connectors: 1 x HDMI Type AVideo Output Connectors: 1 x BNC connectorIR Input Ports: 1 x 3.5mm stereo jackIR Output Ports: 1 x 3.5mm mono jackDimensions (Casing - W x D x H): 79mm x 84mm x 28mmCEX120B-RX:Video Input Connectors: 1 x BNC connectorVideo Output Connectors: 1 x HDMI Type AIR Input Ports: 1 x 3.5mm stereo jackIR Output Ports: 1 x 3.5mm mono jackDimensions (Casing - W x D x H): 79mm x 84mm x 28mm Supported Video Resolutions: 480i 30Hz, 576i 25Hz, 720p 50Hz, 720p 60Hz, 1080i 25Hz, 1080i 30Hz, 1080p 24HZ, 1080p 30Hz, 1080p 60HzNote: 4K, 3D and 480i/p Video is not supportedSupported Audio Resolutions: Dolby Digital (up to 7.1CH), DTS ES (up to 7.1CH), 2CH PCMUnit Weight: 2 x 0.25KgOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature: -4°F to 140°F (-20°C to 60°C)Box Contents:1 x CEX120B-TX1 x CEX120B-RX2 x 5V/1.2A DC Power Supply1 x IR1 Emitter1 x IRR Receiver2 x Mounting Brackets2 x F-type to BNC Adaptor1 x User Manual
