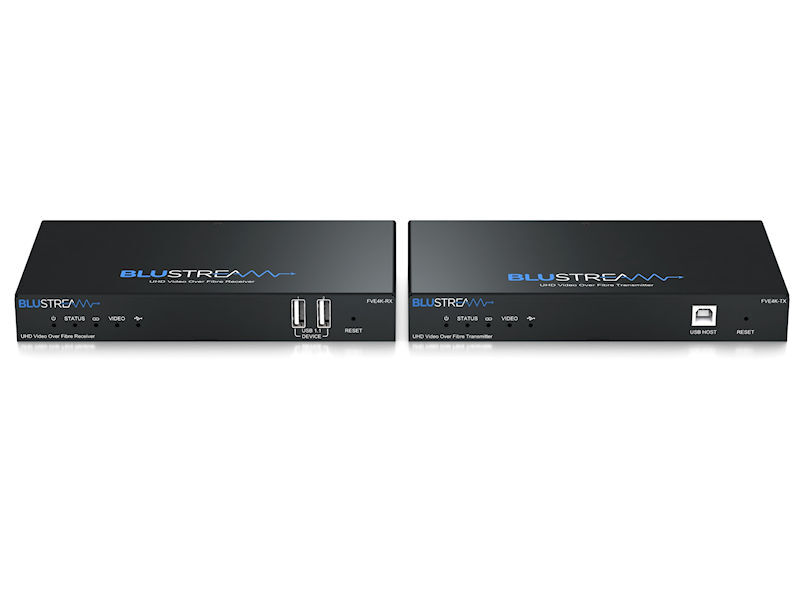

BLUSTREAM HDMI Over Fibre Extender SET

The Blustream FVE4K-KIT is an industry leading HDMI2.0 4K 60Hz 4:4:4 HDCP 2.2 fibre extender solution utilising the latest in SDVoE technology.It supports un-compromised distribution of the latest 4K resolutions including HDR resulting in the ability to transmit 18Gbps signals over distances not capable of being achieved over copper cabling.The FVE4K-KIT supports bi-directional IR, RS-232, USB1.1, and 1Gbps LAN up to distances supported by the 10Gbps SFP+ modules and fibre cable in use.Key FeaturesAdvanced 18Gbps UHD Video over 10Gbps fibre cable with visually lossless compression and zero latencySupports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4 and 10/12-bit HDR sourcesFeatures 1x HDMI loop-out on FVE4K-TX for integrating local displays or cascading to multiple devicesSupports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specificationsUSB 1.1 point to point pass-throughBi-directional 10/100/1000BaseT Ethernet pass-throughSupports bi-directional 5V or 12V IR pass-throughBi-directional RS-232 pass-throughHDCP 2.2 compliant with advanced EDID managementLocal 12V 2A power supply required at TX & RX (supplied)Specifications:FVE4K-RXVideo Input Connectors: 1 x SFP+ module video network (SFP+ module not supplied)Video Output Connectors: 1 x HDMI Type A, femaleEthernet Port: 1 x 1Gb LAN RJ45 pass-throughUSB / KVM Port: 2 x USB-Type A (Devices)5V IR Input Port: 1 x 3.5mm stereo jack5V IR Output Port: 1 x 3.5mm mono jackRS-232 Port: 1 x 3-pin Phoenix connectorPower Supply: 12V/2A DC, screw type connector FVE4K-TXVideo Input Connectors: 1 x HDMI Type A, femaleVideo Output Connectors: 1 x SFP+ module video network, 1 x HDMI Type A, female (SFP+ module not supplied)Ethernet Port: 1 x 1Gb LAN RJ45 pass-throughUSB / KVM Port: 1 x USB-Type B (Host)5V IR Input Port: 1 x 3.5mm stereo jack5V IR Output Port: 1 x 3.5mm mono jackRS-232 Port: 1 x 3-pin Phoenix connectorPower Supply: 12V/2A DC, screw type connectorFVE4K-KIT:Casing Dimensions (W x D x H): 180mm x 103mm x 24mm (TX / RX - without connections)Casing Dimensions (W x D x H): 180mm x 108mm x 24mm (TX / RX - with connections)Operating Temperature: 32°F to 104°F (0°C to +40°C)Storage Temperature: -4°F to 140°F (-20°C to +60°C)Distance capabilities:The FVE4K-KIT has been designed with 10Gb SFP+ slots to allow for flexible connectivity over varying distances to suit the individual installation, and requirements of different fibre cable types that can be used.Using SDVoE Technology, the fibre link will need to be 10Gb capable, and Blustream would recommend using SFP+ modules that are designed to work in conjunction with the fibre cable being used. Please use the below as a guide to the distance capabilities of the differing fibre cable types that can be used with the FVE4K-KIT.Single mode fibre (OS2) – up to 10km (10Gb Base SE-SR)Multimode fibre (OM3) – 300mMultimode fibre (OM4) – 400mMultimode fibre (OM5) – 300mBox Contents:1 x FVE4K-TX1 x FVE4K-RX2 x 12V/2A DC power supply1 x IR emitter1 x IR receiver2 x Mounting kit1 x Quick Reference Guide
