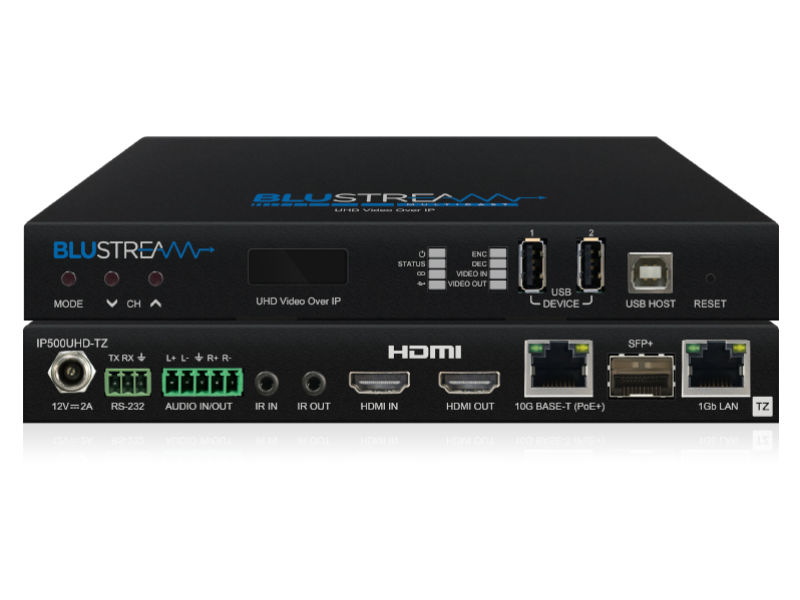

BLUSTREAM Multicast UHD Video Over IP 10Gb

IP Multicast UHD Video Transceiver over 10GB Network , HDMI 2.0 4K 60Hz 4:4:4, Bi-directional IR, RS-232 & USB/KVM, PoE, Ethernet pass-through, Analogue Audio Embedding, Analogue Audio Breakout and HDCP 2.2The Blustream IP500UHD Transceiver is a SDVoE Compliant AV over IP solution that provides the highest-quality, uncompressed 4K with zero latency Audio/Video extension over copper or optical fibre 10G networks. The IP500-TZ includes support for HDMI 2.0 including distribution of HDR (High Dynamic Range), 10-bit colour content and multi-channel HD audio signals.The IP500UHD-TZ provides advanced features including PoE and transmission of multiple control and data signals alongside audio and video, including IR, RS-232, USB (KVM) and 1Gb Ethernet. The IP500UHD-TZ is ideal for 18Gbps HDMI installations where multiple transceivers can be combined with one or more 10GbE copper / fibre switches to form a distributed video matrix, multi-viewer system or video wall system.Main features:Advanced 18Gbps UHD Video over 10Gb network with visually lossless compression and zero latencySupports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4 and 10/12-bit HDR sources, including Dolby VisionSupports video scaling and single-frame switchingSupports all known digital HDMI audio formats including Dolby TrueHD, Atmos, DTS-HD Master Audio and DTS:X transmissionsSupport fixed signal routing function for IR, RS-232, CEC and USBUSB end to end/point to point pass-throughAnalogue L/R audio embedding and audio breakout (balanced and unbalanced)Bi-directional 10/100/1000BaseT Ethernet pass-throughSupports bi-directional 5V or 12V IR pass-throughPoE (Power over Ethernet) to power Blustream products from PoE+ switchHDCP 2.2 compliant with advanced EDID managementLocal 12V 2.5A power supply (should Ethernet switch not support PoE+)Features 4 operational modes: Matrix distribution (requires 10GB network switch) / Video wall (requires 10GB network switch) / Multiview mode (Requires 10GB network switch) / One-to-one HDMI extender (No network switch required)
