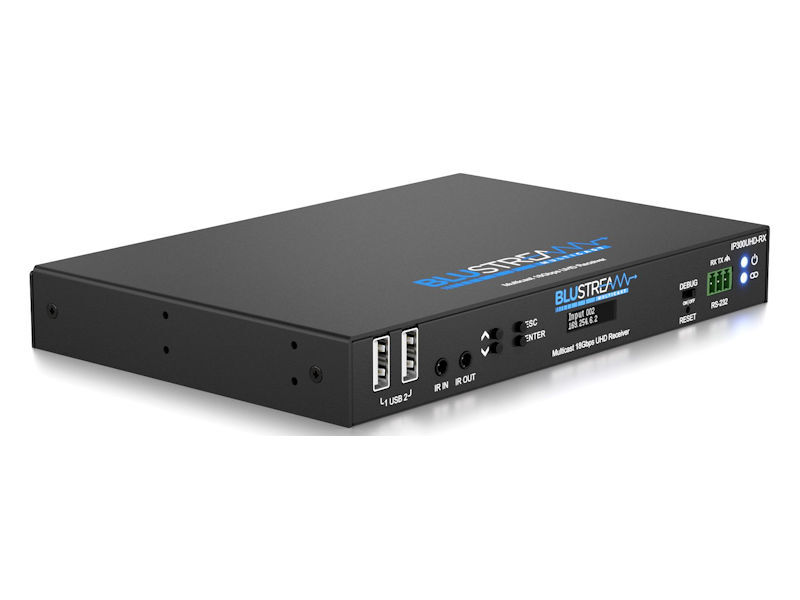

BLUSTREAM Multicast UHD Video Over IP - RX

The Blustream IP300 series Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K 18Gbps HDMI video over a 1Gb managed network.Featuring full interoperability with the IP350UHD product line, the IP300UHD-RX is an industry leading 4K HDMI receiver that, using visually lossless compression technology, delivers 18Gbps HDMI, HDCP2.2, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.The IP300UHD-RX features a second RJ45 LAN port for daisy chaining the HDMI signal onto further IP300UHD-RX units.With a full 18Gbps HDMI scaling chipset on-board, the HDMI output can be adjusted to lower resolutions where legacy displays are required in the same system as full 4K. The scaling capabilities of this unit also allow for videowalls to be created where needed.The unit can be powered via PoE from the network switch, or locally should the switch not support PoE.With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.Key Features:Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signalsVirtually unlimited system sizeExtends HDMI up to a distance of 100m over a single CAT cableSFP port for signal distribution over fibreSupports up to 4K UHD 60Hz 4:4:4Supports HDR including Dolby Vision LLMSupports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissionAdvanced signal management for independent routing of IR, RS-232, USB/KVM, audio and videoPoE (Power over Ethernet) to power Blustream unit from PoE switchHDCP 2.2 compliant with full 18Gbps scaling capabilities for inclusion of non-4K / legacy displays whilst distributing 4K to other parts of the systemAnalogue L/R audio output support both balanced and unbalanced audio signalsLAN loop-out for one-to-many extender modeOLED front panel display for advanced system information and manual configurationOptional 24V power supply (should Ethernet switch not support PoE)Compatible with Blustream IP300UHD-TX and IP350UHD-TX/RX productsFeatures 4 operational modes:- Matrix distribution (requires 1Gb network switch)- Video wall (requires 1Gb network switch)- One-to-one HDMI extender (no network switch required)- One-to-many HDMI extender (no network switch required)Specifications:Video Input: 1 x LAN RJ45 connector, 1 x SFP connectorVideo Output: 1 x HDMI Type A, female, 1 x LAN RJ45 connectorAudio Input: 1 x Optical (S/PDIF)Audio Output: 1 x 5-pin Phoenix connectorEthernet Port: 2 x LAN RJ45 connectorFibre Port: 1 x SFP connector (fibre module not supplied)RS-232 Serial Port: 1 x 3-Pin Phoenix connectorUSB/KVM Port: 2 x USB2.0-type B for KVMIR Input: 1 x 3.5mm stereo jackIR Output: 1 x 3.5mm mono jackDimensions (W x D x H ): 190mm x 128mm x 25mmPackaging Dimensions (W x D x H): 260mm x 180mm x 55mUnit Weight: 0.75kgPower Consumption: 9W (max)Shipping Weight: 1kgOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature : -4°F to 140°F (-20°C to 60°C)Power Supply: Class 3 IEEE 802.3af POE PD or 24V 1A DC PSUBox Contents:1 x IP3000UHD-RX1 x IRR Receiver1 x IRE1 Emitter1 x Audio 5-pin Phoenix Connector1 x Serial 3-pin Phoenix Connector1 x Mounting Kit
