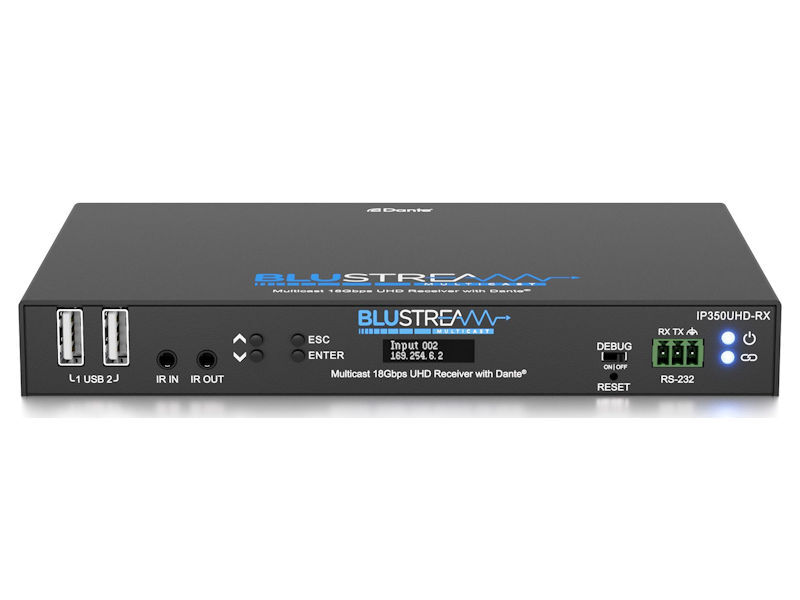

BLUSTREAM Multicast UHD Video Over IP - RX

The Blustream IP300 series Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K HDMI video over a 1Gb managed network.Featuring full interoperability with the IP300UHD product line, the IP350UHD-RX is an industry leading Dante enabled 4K HDCP 2.2 HDMI receiver that, using visually lossless compression technology, delivers 18Gbps HDMI, Dante & AES67 audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.The IP350UHD-RX can support both video and Dante audio distribution from a single network. A second RJ45 connection allows for the Dante audio network interface to be segregated from the video over IP network if required.With a full 18Gbps HDMI scaling chipset on-board, the HDMI output can be adjusted to lower resolutions where legacy displays are required in the same system as full 4K. The scaling capabilities of this unit also allow for videowalls to be created where needed.The unit can be powered via PoE from the network switch, or locally should the switch not support PoE.With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.Key Features:Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signalsVirtually unlimited system sizeExtends HDMI up to a distance of 100m over a single CAT cableSFP port for signal distribution over fibreSupports up to 4K UHD 60Hz 4:4:4Supports HDR including Dolby Vision LLMSupports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissionExtends HDMI and Dante up to a distance of 100m over a single CAT cableDual RJ45 network ports configurable for independent or combined HDMI and Dante signal distributionSFP port for independent or combined HDMI and Dante signal distribution over a single fibre cableAdvanced signal management for independent routing of IR, RS-232, USB/KVM, audio and videoPoE (Power over Ethernet) to power Blustream unit from PoE switchHDCP 2.2 compliant with full 18Gbps scaling capabilities for inclusion of non-4K / legacy displays whilst distributing 4K to other parts of the systemAnalogue L/R audio output supports both balanced and unbalanced audio signalsOptical (S/PDIF) input for 2ch optical audio return that can be fed into Dante networkOLED front panel display for advanced system information and manual configurationOptional 24V power supply (should Ethernet switch not support PoE)Compatible with Blustream IP300UHD-TX and IP350UHD-TX/RX productsFeatures 4 operational modes: - Matrix distribution (requires 1Gb network switch)- Video wall (requires 1Gb network switch)- One-to-one HDMI extender (no network switch required)- One-to-many HDMI extender (no network switch required)Specifications:Video Input: 1 x LAN RJ45 connector, 1 x SFP connectorVideo Output: 1 x HDMI Type A, female, 1 x LAN RJ45 connectorAudio Input: 1 x 5-pin Phoenix connectorAudio Output: 1 x 5-pin Optical (S/PDIF) connectorDante Port: 1 x LAN RJ45 connector (LAN2)Fibre Port: 1 x SFP connector (fibre module not supplied)RS-232 Serial Port: 1 x 3-Pin Phoenix connectorUSB/KVM Port: 1 x USB2.0-type B for KVMIR Input: 1 x 3.5mm stereo jackIR Output: 1 x 3.5mm mono jackDimensions (W x D x H ): 190mm x 128mm x 25mmPackaging Dimensions (W x D x H): 260mm x 180mm x 55mUnit Weight: 0.75kgPower Consumption: 12W (max)Shipping Weight: 1kgOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature : -4°F to 140°F (-20°C to 60°C)Power Supply: Class 3 IEEE 802.3af POE PD or 24V 1A DC PSUBox Contents:1 x IP350UHD-RX1 x IRR Receiver1 x IRE1 Emitter1 x Audio 5-pin Phoenix Connector1 x Serial 3-pin Phoenix Connector1 x Mounting Kit
