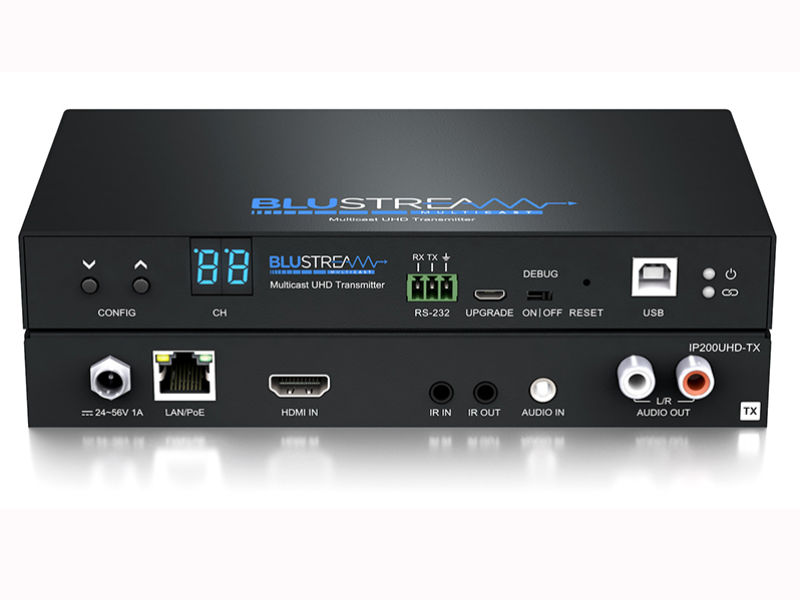

BLUSTREAM Multicast UHD Video Over IP - TX

The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.Can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.Main features:Advanced UHD video over 1Gb NetworkVirtually unlimited system sizeExtends HDMI up to a distance of 100m over a single CAT cableSupports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmissionAdvanced signal management for independent routing of IR, RS-232, USB/KVM, audio and videoPoE (Power over Ethernet) to power Blustream products from PoE switchHDCP2.2 compliant with advanced EDID managementAnalogue L/R audio embeddingAnalogue L/R audio breakoutLocal 24-56V power supply (should Ethernet switch not support PoE) - sold separatelyFeatures 4 operational modes: Matrix distribution (requires 1GB network switch) / Video wall (requires 1GB network switch) / One-to-one HDMI extender (no network switch required) / One-to-many HDMI extender (no network switch required)SpecificationsVideo input: 1x HDMI Type A, femaleVideo output: 1x LAN RJ45 connectorAudio input:1x 3.5mm L/R Analogue audioAudio output connectors: 2x RCA L/R Analogue audioEthernet port: 1x LAN RJ45 connectorRS-232 Serial port: 1x 3-Pin Phoenix connectorUSB/KVM Port: 1x USB - Type BIR input: 1x 3.5mm stereo jackIR output: 1x 3.5mm mono jackFirmware Update: 1x Micro-USBMounting kit includedDimensions (W x D x H ): 190mm x 114mm x 25mmShipping Weight: 0.8kgOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature : -4°F to 140°F (-20°C to 60°C)
