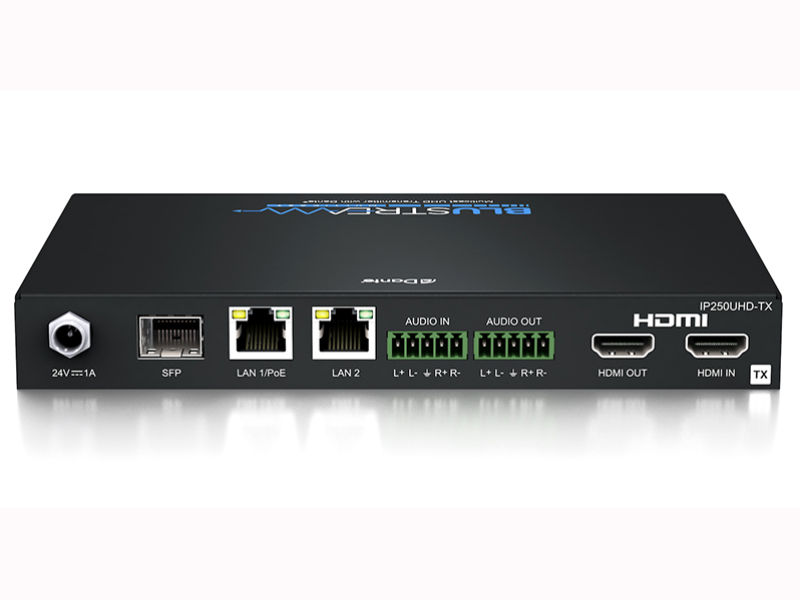

BLUSTREAM Multicast UHD Video Over IP - TX

UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K HDMI video over a 1Gb Managed Network. Compatible with the current IP200 platform, the IP250UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers 10Gb HDMI, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture, or greater distances using the in-built fibre SFP port.Featuring dual RJ45 network ports for independent or combined HDMI and/or Dante signal distribution. The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.Main features:Advanced UHD video over 1Gb Managed NetworkOperates as a stand-alone system, or together with existing IP200UHD productsVirtually unlimited system sizeExtends HDMI and Dante up to a distance of 100m over a single CAT cableDual RJ45 network ports configurable for independent or combined HDMI and Dante signal distributionSFP port for independent or combined HDMI and Dante signal distribution over a single fibre cableSupports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)Supports HDR input @ 4K 30/25/24HzFeatures 1 x HDMI loop-out for integrating local displays or cascading to multiple devicesIn-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio inputIn-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio outputAnalogue L/R audio embeddingAnalogue L/R audio outputs support both balanced and unbalanced audio signalsSupports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissionAdvanced signal management for independent routing of IR, RS-232, USB/KVM, audio and videoOLED front panel display for advanced system information and manual configurationPoE (Power over Ethernet) to power Blustream Multicast products from PoE switchHDCP 2.2 compliant with advanced EDID managementLocal 24V 1A power supply should Ethernet switch not support PoE (not included)Features 4 operational modes: - Matrix distribution (requires 1Gb network switch) / Video wall (requires 1Gb network switch) / One-to-one HDMI extender (no network switch required) One-to-many HDMI extender (no network switch required)
