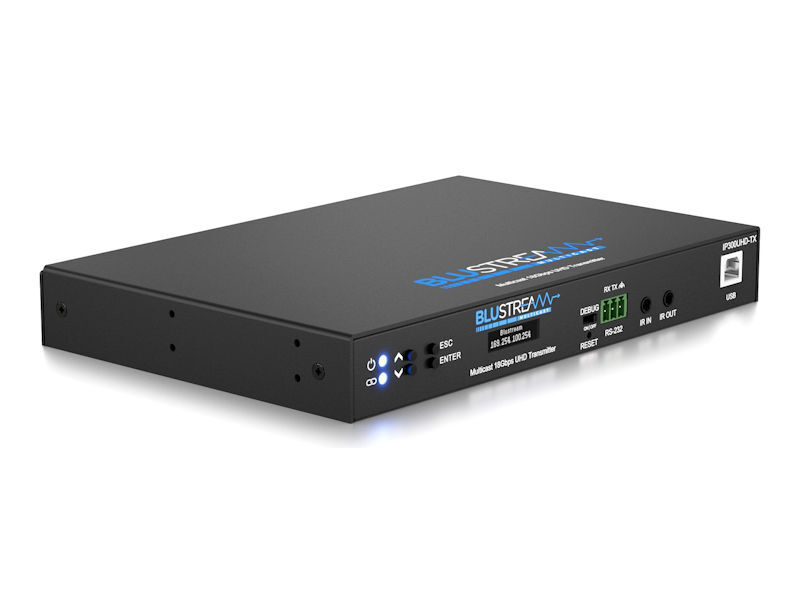

BLUSTREAM Multicast UHD Video Over IP - TX

The Blustream IP300 series Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K 18Gbps HDMI video over a 1Gb managed network.Featuring full interoperability with the IP350UHD product line where Dante is required, the IP300UHD-TX is an industry leading 4K HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, HDCP2.2, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.The unit can be powered via PoE from the network switch, or locally should the switch not support PoE.With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.Key Features:Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signalsVirtually unlimited system sizeExtends HDMI up to a distance of 100m over a single CAT cableSFP port for signal distribution over fibreFeatures 1 x HDMI loop-out for integrating local displays or cascading to multiple devicesSupports up to 4K UHD 60Hz 4:4:4Supports HDR including Dolby Vision LLMSupports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissionAdvanced signal management for independent routing of IR, RS-232, USB/KVM, audio and videoPoE (Power over Ethernet) to power Blustream unit from PoE switchHDCP 2.2 compliant with advanced EDID managementAudio breakout to optical (S/PDIF) and analogue L/R audio outputs, supporting both balanced and unbalanced audio signalsBalanced/unbalanced analogue audio input for replacing the HDMI embedded audio with a different audio signalOLED front panel display for advanced system information and manual configurationOptional 24V power supply (should Ethernet switch not support PoE)Compatible with Blustream IP300UHD-RX and IP350UHD-TX/RX productsIP300/350 Multicast platform features 4 operational modes: - Matrix distribution (requires 1Gb network switch) - Video wall (requires 1Gb network switch) - One-to-one HDMI extender (no network switch required) - One-to-many HDMI extender (no network switch required)Specifications:Video Input: 1 x HDMI Type A, femaleVideo Output: 1 x LAN RJ45 connector, 1 x SFP connector, 1 x HDMI Type A, femaleAudio Input: 1 x 5-pin Phoenix connectorAudio Output: 1 x 5-pin Phoenix connector, 1 x Optical (S/PDIF)Ethernet Port: 1 x LAN RJ45 connectorFibre Port: 1 x SFP connector (fibre module not supplied)RS-232 Serial Port: 1 x 3-Pin Phoenix connectorUSB/KVM Port: 1 x USB2.0-type B for KVMIR Input: 1 x 3.5mm stereo jackIR Output: 1 x 3.5mm mono jackDimensions (W x D x H ): 190mm x 128mm x 25mmPackaging Dimensions (W x D x H): 260mm x 180mm x 55mUnit Weight: 0.75kgPower Consumption: 8W (max)Shipping Weight: 0.8kgOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature : -4°F to 140°F (-20°C to 60°C)Power Supply: Class 3 IEEE 802.3af POE PD or 24V 1A DC PSUBox Contents:1 x IP3000UHD-TX1 x IRR Receiver1 x IRE1 Emitter2 x Audio 5-pin Phoenix Connector1 x Serial 3-pin Phoenix Connector1 x Mounting Kit
