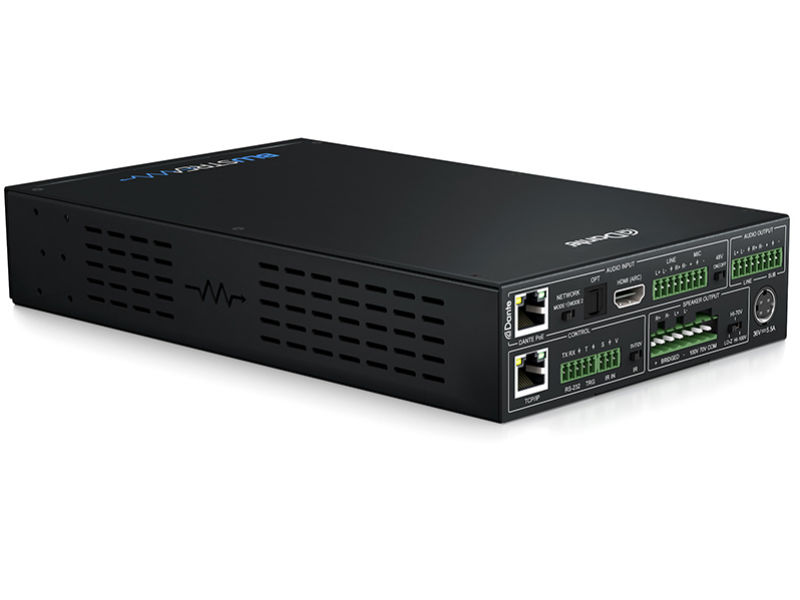

BLUSTREAM Networked Power Amplifier

The NPA100DA networked audio zone amplifier delivers advanced audio integration within a commercial or residential AV installation.The NPA100DA features a 2x 50W digital amplifier (1 x 100W mono) or 70V / 100V hi-level constant voltage output, dedicated LFE subwoofer output, Dante audio integration and 2ch balanced / un-balanced audio outputs.The NPA100DA supports a variety of inputs including 2ch Dante audio, HDMI ARC, MIC audio with 48V Phantom power support, optical audio and 2ch balanced / un-balanced analogue audio.The NPA100DA can be powered via PoE++ from a compatible network switch, or locally should the switch not support PoE++. The unit also includes the ability to lower the amplifier power output subject to PoE capabilities, support for combined or independent LAN and Dante connections, DSP with a 10 band EQ, audio delay for lip sync correction, independent gain control for audio inputs and control via front panel, IR, RS-232, TCP/IP, Web Gui or 12v trigger.Advanced network audio amplifier with Dante integrationSupports 2 x 50W @ 4 / 8 ohm, 1 x 100W @ 4 / 8 ohm, or 70 / 100V constant output for multiple speakers with longer cable runsSupports power via PoE++ on Dante LAN connection or via local power supply *Dual network option - independent Dante and LAN control ports, or combined to a single LAN portAudio inputs include: - 2ch Dante/AES67 audio input - HDMI ARC with CEC volume control - MIC audio input with phantom power and auto‐ducking - 2ch Analogue audio input – unbalanced & balanced - 1 x Optical (S/PDIF) audio inputAudio outputs include: - 2ch Dante/AES67 audio Output - 2ch variable/fixed analogue output, balanced/un‐balanced - 1 x LFE subwoofer outputIndependent gain control for input channelsDSP with 31 band EQ with +/-10dB gain and audio delayLocal 12V input trigger for automated power controlControl via front panel, IR, RS‐232 and IPAuto standby mode with signal sensingIn‐built web-GUI for setup and control
