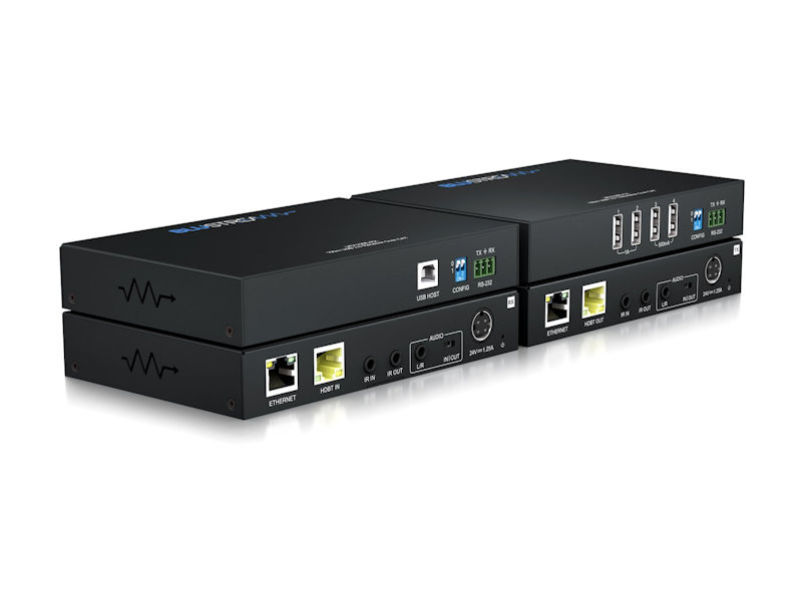

BLUSTREAM USB 2.0 HDBaseT™ Extender SET

The UEX100E-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB 2.0 data, 2ch analogue audio, and control signals up to 100m over a single CAT cable.The UEX100E-KIT allows up to 4x USB devices to be connected to a single USB host with support for a combined transmission data bandwidth of up to 480Mbps, and is backwards compatible with USB 1.1 devices.The UEX100E-KIT also provides bi-directional Power over Cable (PoC), bi-directional IR, RS-232, 2ch analogue audio, and 100Mbps Ethernet/LAN pass through.Main features:Extends USB up to a distance of 100m over a single CAT cable using HDBaseT™ technology*Supports USB 2.0 signal extensionBackwards compatible with USB 1.1 devicesTransmitted data bandwidth up to 480Mbps (combined)1 x USB-B port on the receiver for connection to host device4 x USB-A ports on transmitter for connection to devicesUSB-A ports 1-2 support 5V 1A, USB-A ports 3-4 support 5V 500mABi-directional Ethernet pass-through (100Mbps)Bi-directional IR & RS-232 pass throughSupports 2ch PCM Analogue Audio pass through (direction selectable)Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiverSimple plug and play, no driver installation or setup required*Signal distribution length subject to length of device / host USB cables and CAT cable type
