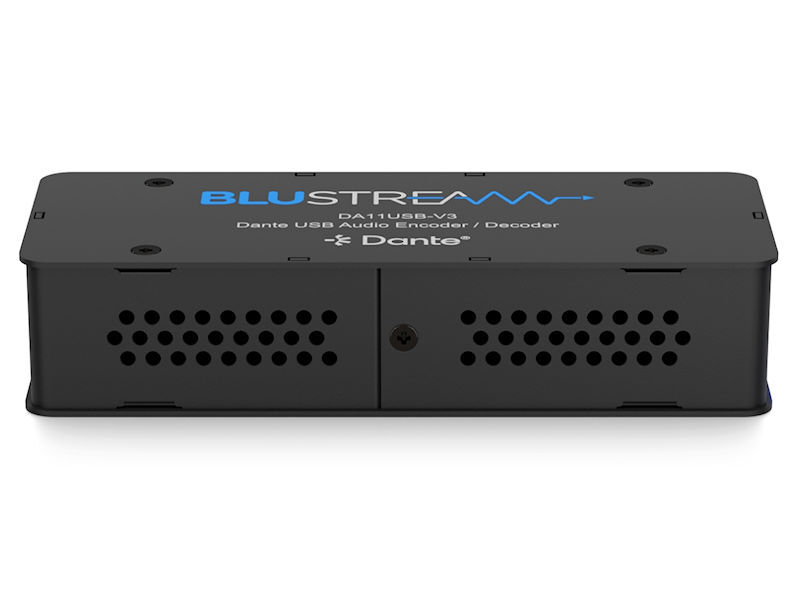

BLUSTREAM USB Dante® Audio Encoder/Decoder

The Blustream DA11USB-V3 delivers enhanced audio performance through an upgraded board design, offering improved digital conversion and exceptional signal clarity. It simultaneously encodes two channels of USB audio into a Dante® digital signal and decodes Dante® back to two channels of USB audio using advanced DEP (Dante Embedded Platform) technology. The result is superior audio reproduction and reliable distribution for a wide range of professional applications.Designed for flexibility, the DA11USB-V3 includes both USB Type-B and USB-C connections, selectable via a side-panel button or API command. This plug-and-play device can be powered via PoE or 5V USB and also supports AES67 RTP audio transport, ensuring broad interoperability across modern audio networks.Key Features:Encodes 2ch USB audio to Dante® digital signalDecodes a Dante® digital signal to 2ch USB audioSelectable USB audio between USB Type-B and USB-C inputsUtilises DEP (Dante® Embedded Platform) technology for direct API control via Dante network interfaceCompliant with USB Audio Device Class Specification V1.0Supports 44.1, 48, 88.2 & 96 KHz sample rates @ 24 BitConfigurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)Supports AES67 RTP audio transportFeatures Class 0 IEEE 802.3af PoE for powering of product from any PoE switchSupports power via 5V USB for when network switch does not support PoESpecifications:Audio Input Connectors: 1 x RJ45, female (100Mbps Dante® network), 1 x USB Type B female, 1 x USB Type C femaleAudio Output Connectors: 1 x RJ45, female (100Mbps Dante® network), 1 x USB Type B female, 1 x USB Type C femaleCasing Dimensions (W x H x D): 120mm x 26mm x 47mm without feetOperating Temperature: 32°F to 104°F (0°C to 40°C)Storage Temperature : -4°F to 140°F (-20°C to 60°C)Power Supply: Class 3 IEEE 802.3af PoE or 5v USBBox Contents:1 x DA11USB-V31 x USB-A to USB-B 1m Cable1 x USB-C to USB-C 1m Cable1 x Quick Reference Card
