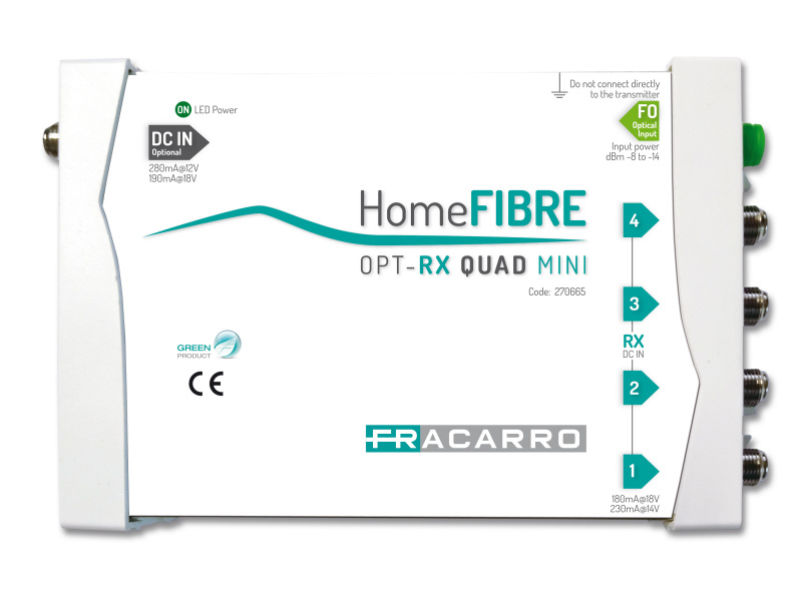

*CLEARANCE* FRACARRO OPT-RX Fibre QUAD
SKU: 270665
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
OPT RX QUAD MINIOptical TV SAT receiver with universal legacy 4SAT+TV+FM outputs, FC/APC optical connector (dimensions 160x100x30mm)DescriptionOptical input: 1
Description & specs
OPT RX QUAD MINIOptical TV SAT receiver with universal legacy 4SAT+TV+FM outputs, FC/APC optical connector (dimensions 160x100x30mm)DescriptionOptical input: 1 FC/PCOutputs: 4 (TV + SAT)Optical inputConnector: FC/APCWaveLengtj nm:1290-1600Optical return loss dB: >45Max optical input power dB: -8RF OutputsFrequency band MHz: 88-862/950-2150Connectors Type: F femaleReturn loss dB: -10Output level TV-8dBmo(40Mux) dBµV: 81-8dBmo(16Mux) dBµV: 84-8dBmo(8Mux) dBµV: 87-14dBmo(40Mux) dBµV: 69-14dBmo(16Mux) dBµV: 72-14dBmo(8Mux) dBµV: 75Output level SAT-8dBmo dBµV: 76-14dBmo dBµV: 64FeaturesPower supply: Vac/HzConsumption W: 3.5Current consumption mA, V: 280, 12 190, 18Power supply V: 14/18 on all outputsOperating temperature °C: -5 – +50Leds dBµV: Power status green LEDStandard conformity: CEI EN 50083-2 EN60065Dimensions mm: 160x98x30
