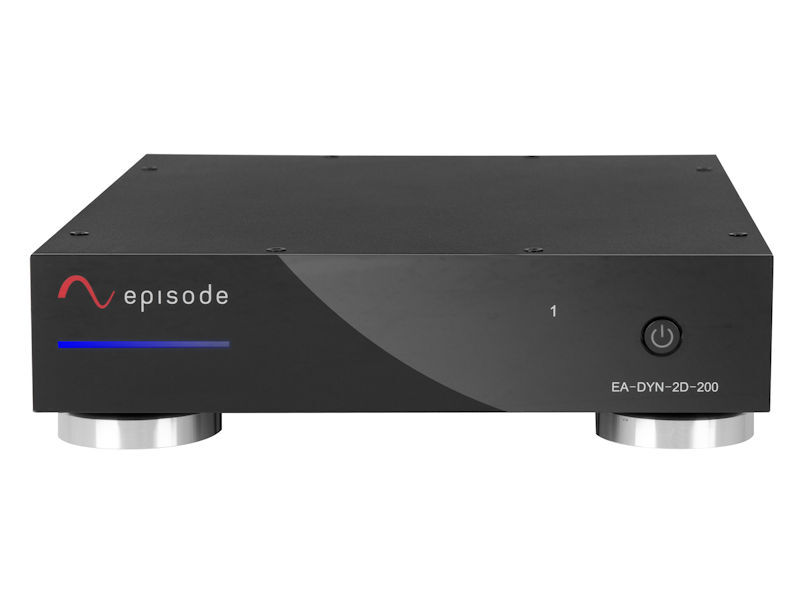

EPISODE® Dynamic Series Class D Amplifier

The Episode® Dynamic Series Amplifier delivers exceptional audio performance in a small, lightweight footprint. Built with premium components and useful features like audio sensing, global inputs, bridgeable outputs, and adjustable gain control, this amp offers the versatility required for today's sophisticated audio systems. Available in 2-, 8-, 12-, and 16-channel options, with up to 1000 total watts of power, the Dynamic series can handle just about any audio job you have.Specifications:Channels - 2Power Output @ 8ohm - 100WPower Output @ 4ohm - 200WPower Output Bridged @ 8ohm - N/AInputs - Analog input for each channel, Optical SPDIF input, 3.5mm 12V trigger inputOutputs - Analog Loop Output, Analog Sub Output, Optical SPDIF loop output, 3.5mm 12v Trigger outputSub Output - Unity gain, 2nd order LP filter at 200HzSensitivity Input - 0.5 - 4 VrmsTopology - Class DTHD (Total Harmonic Distortion) - < 0.05 @ 1W & 50W, 1KHzSignal to Noise Ratio - > 85dB A-WeightedExternal Trigger Voltage - 4.5 - 12VColour - BlackFrequency Response - 20Hz to 20KHz + 2dB at 1/8th powerWeight - 4lbsLine Voltage - 115-230V ACRack Spacing - 1U Half RackCertifications - UL, CE, FCC
