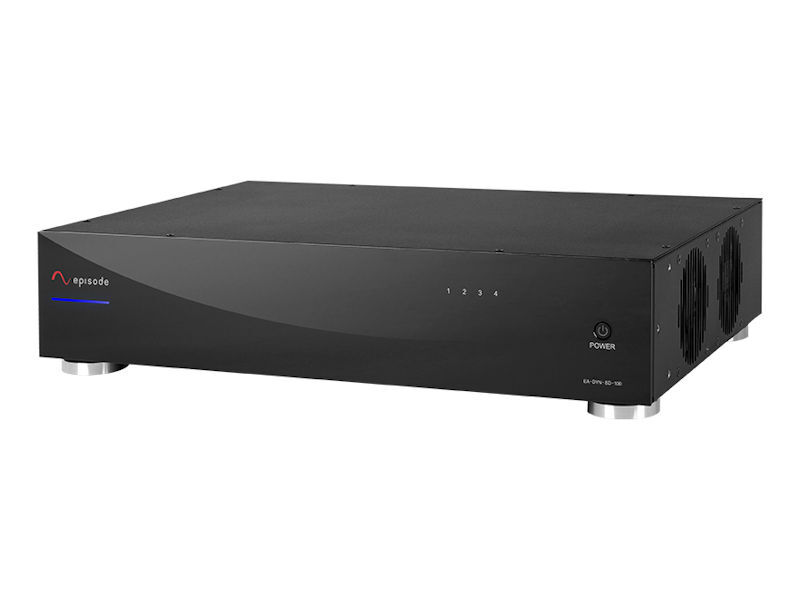

EPISODE® Dynamic Series Class D Amplifier

The Episode® Dynamic Series Amplifier delivers exceptional audio performance in a small, lightweight footprint. Built with premium components and useful features like audio sensing, global inputs, bridgeable outputs, and adjustable gain control, this amp offers the versatility required for today's sophisticated audio systems. Available in 2-, 8-, 12-, and 16-channel options, with up to 1000 total watts of power, the Dynamic series can handle just about any audio job you have.Specifications:Channels: 8Power Output @ 8ohm: 50WInputs: Analog input for each channel, 2 x analog global inputs, 1 x Optical SPDIF global input, 3.5mm 12V trigger inputPower Output @ 4ohm: 100WPower Output Bridged @ 8ohm: 200WOutputs: 2 x Analog Loop outputs, Analog Sub output for each zone, Optical SPDIF loop output, 3.5mm 12V trigger outputSub Output: Unity gain, 2nd order LP filter at 200HzSensitivity Input: 0.5 - 4VrmsTopology: Class DTotal Harmonic Distortion: < 0.05 @ 1W & 50W, 1 KHzSignal to Noise Ratio: > 85dB A-weightedExternal Trigger Voltage: 4.5 - 12VFrequency Response: 20Hz to 20KHz + 2dB at 1/8th powerWeight: 14lbsLine Voltage: 115-230V ACRack Spacing: 2UCertifications: UL, CE, FCC
