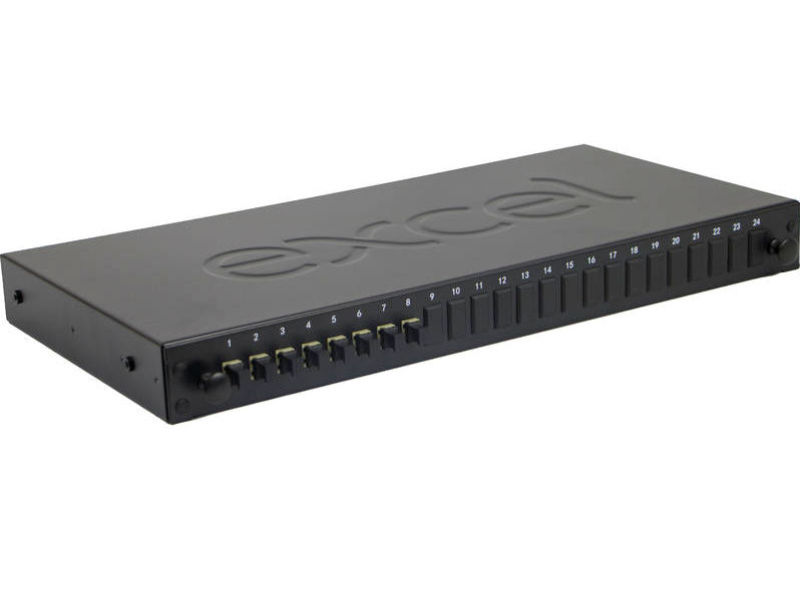

EXCEL 24 PORT PATCH PANEL - 16 WAY LC

The Excel range of LC patch panels are sliding drawer ‘tray style’ housings suitable for either direct termination or splicing of up to 48 fibres in 1U of rack space. Each panel is manufactured from high quality 2mm thick steel and finished in Black powder coat to provide a strong and durable unit.To the front of the patch panel the specified number of adaptors are loaded from left to right.Each panel utilises colour coded adaptors, beige, aqua and violet for multimode, blue for singlemode, and green for SM APC. Each duplex (or quad) adaptor accommodates two (four) terminated fibres. Each panel has included within it a set of fixing brackets, and a cable management pack which includes cable entry glands, cable ties, splice holders, cage nuts and screws are also provided.Note that LC panels can be assembled to order using a combination of adaptors, pigtails and splice cassettes.Main features:Multimode/Singlemode options availableChoice of port densityManagement and fixing kit includedAdjustable fixing arms includedMultiple cable entry to rearSliding drawer on ball bearing runnersUp to 48 fibres1U rack space designPort identification numbersOptional patchcord managementRecessed adaptors - larger labelling fieldSpecial configurations made to order25 Year System WarrantySuitable for number of fibre cores: 48Suitable for number of module inserts: 24Loaded with number of couplings/adapters: 8With pigtails: noFibre type: Multimode 50/125 and 62.5/125Fibre class: OM1/OM2/OM3/OM4/OM5
