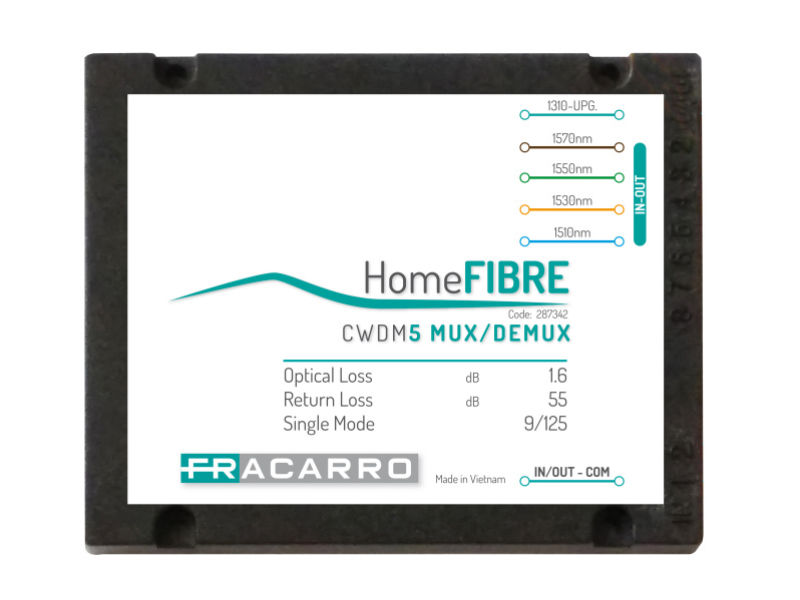

FRACARRO CWDM-5 DEMUX Fibre 1310 to 1570
SKU: 287342
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
CWDM5Optical filters with different wavelengths for mixing or demixing up to 5 wavelengths within the same fibre cable.DescriptionInputs no: 1Outputs no: 5WaveL
Description & specs
CWDM5Optical filters with different wavelengths for mixing or demixing up to 5 wavelengths within the same fibre cable.DescriptionInputs no: 1Outputs no: 5WaveLength 1 nm: 1510WaveLength 2 nm: 1530WaveLength 3 nm: 1550WaveLength 4 nm: 1570WaveLength 5 nm :310Insertion loss dB: <1.6Tap loss: dBReturn loss: dB: >55Isolation dB: >30Operating temperature °C: -20 – +55FibreFibre type: 9/125Length m: 1Sheath: LSZH, G657A1Connectors Type: SC/APCColour code1511: Light blue1531: Yellow1551:Green1571:BrownSecond window 1310:White
