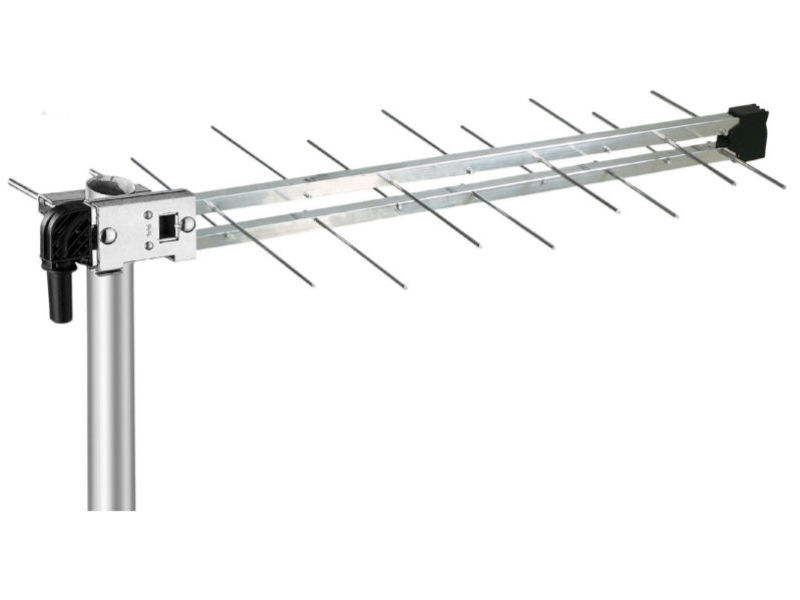

FRACARRO LP4F Log Periodic A (Loose)
SKU: 216151
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
Pre-assembled band IV periodic Log Antenna characterized by extreme ease of installation thanks to the F connector placed near the pole attachment.Main features
Description & specs
Pre-assembled band IV periodic Log Antenna characterized by extreme ease of installation thanks to the F connector placed near the pole attachment.Main features:Installation of the the antenna in both polarization, vertically and horizontally without adapters or other accessories.Special connection of the dipole which guarantees contact reliability over time.Excellent mechanical resistance for fixing the elements to the cradle, excellent mechanical resistance to rotation on the pole, good electrical performance.The F connector is protected by a connector cover with bayonet coupling.Black antennaElements n °: 8 + 8Band: 4Channels: E21-E37Bandwidth MHz: 470-606I earn dBi: 10Forward / backward ratio dB: 32Loss of reflection dB: -18Beam width (-3dB) °: ± 28Wind resistance 120 Km / h (720N / m²) kg (N): 2.8 (27.46)Connector Guy: F.Impedance Ohm: 75Maximum pole connection diameter (Ø) mm: 60Dimensions (L x H) cm: 99 x 32Multiple packaging quantity Pcs: 60Unit weight kg:0.60Total weight of multiple packaging kg: 38.0AccessoriesHorizontal polarization: IncludedHorizontal zenith adjustment: PV10 (210011)Vertical polarization: IncludedVertical zenith adjustment: PV10 (210011)
