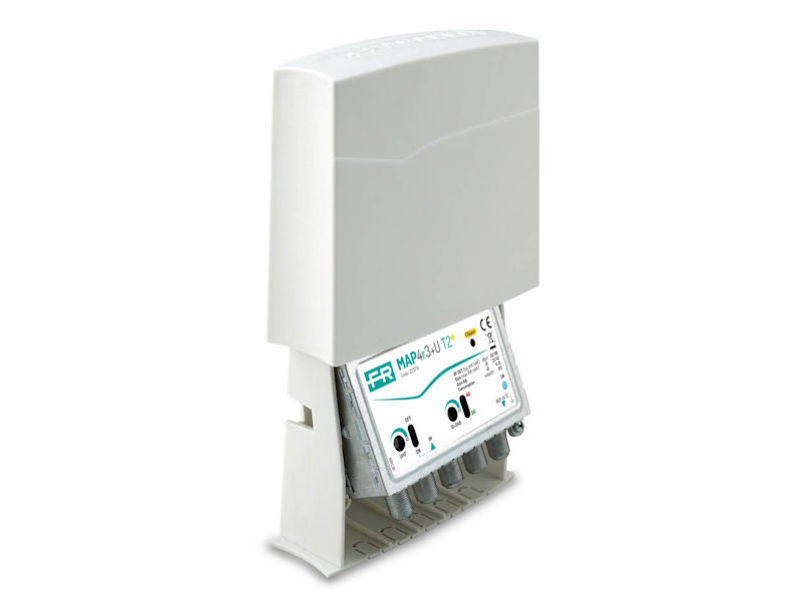

FRACARRO MAP4RU T2+ 42dB Masthead 5G/4G

Amplifier with 1 pole input (UHF) with 42dB gain and output level up to 116dBμV in UHF band , 0-15dB gain adjustment and low noise figure. T2 technology with innovative cut-off switch for LTE interference 4G at 790MHz or 5G at 694MhzMain features:T2 selector : innovative cut-off selection switch for LTE 4G at 790MHz or 5G at 694MHz interference; integrated 4G and 5G LTE filters to guarantee the connections greater protection against bad weather than an external filter.CLIPPER technology : exclusive system that limits the gain of the UHF band of the device to ensure the maximum level of RF output available and to minimize intermodulation; there is an LED that lights up when this control is activated.RED Compliant : each model complies with the regulatory obligations regarding the Radio Spectrum, Electromagnetic Compatibility and Safety set out in recent European directives.Die- cast ZAMAK frame with metal covers for very high noise shielding (LTE Free).The ABS outdoor protective bell is equipped with a slide opening and a tilting system of the amplification section, to make the installer's job easier.Selector for inserting the tele-power supply on the UHF input , or on the V + U input depending on the model.Status LED for correct power supply and fixing clamp suitable for poles with a diameter up to 60mm.IN: 1Bands: UHFLev. Exit (dBµV): 116I earn (dB): 42Reg. (dB): 15Noise figure (dB): 3Absorption (but) :100 @ 12Vdc
