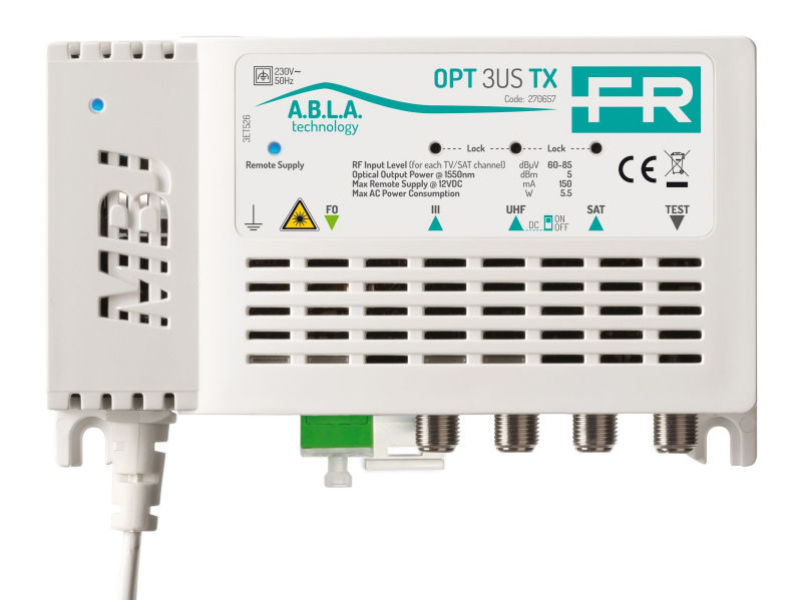

FRACARRO OPT 3US TX Fibre Transmitter
SKU: 270657
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
OPT 3US TXOPT-MBJ optical transmitter with three inputs for the distribution of the signals of band 3, UHF and an entire IF-IF band on a single fibre. Optical o
Description & specs
OPT 3US TXOPT-MBJ optical transmitter with three inputs for the distribution of the signals of band 3, UHF and an entire IF-IF band on a single fibre. Optical output level of 5dBm with laser, wavelength 1550nm (dimensions 135x82x39mm)DescriptionInputs: 3 (3, UHF, IF-IF)Outputs : 1 (TEST)Optical Output: 1 SC/APCSat InputFrequency band MHz: 950-2150Connectors: F femaleReturn loss dB: 8Input level dBµV: 60-85 @TPTV InputFrequency band MHz: 174-230, 470-790Connectors: F femaleReturn loss dB: 8Input level dBµV: 60-85 @MUXTest outputFrequency band MHz: 174-230 / 470-790 / 950-2150Connectors: F femaleTest attenuation: dBµVOptical OutputConnectors: SC/APCWaveLength: 1550Optical power dB: 5Optical return loss dBµV: >30FeaturesPower supply Vac, Hz: 230, 50-60Consumption W:5.5Remote feeding mA, V:100, 12 (on the UHF input)Operating temperature °C: -10 – +55AGC Dynamic dB: 25Leds dBµV:Blue on / Signal in the correct A.B.L.A. range, remote feeding activeStandard conformity: CEI EN 50083-2 EN60065Dimensions mm: 135x82x39
