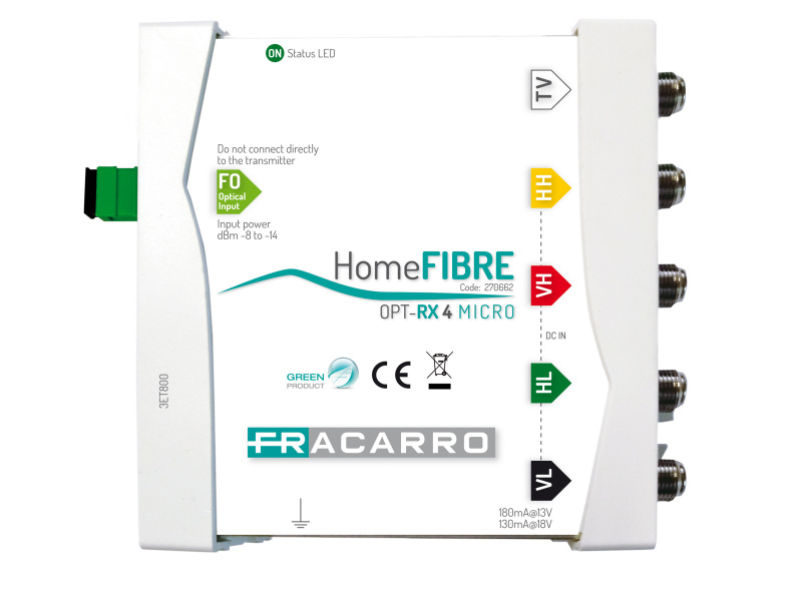

FRACARRO OPT-RX-4 Fibre Receiver
SKU: 270662
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
OPTRX 4 MICROOptical TV SAT receiver with universal legacy 4SAT+TV+FM outputs, SC/APC optical connectorOptical input: 1 SC/APCOutputs: 4 SAT (HL,VL,HH,VH) + 1 T
Description & specs
OPTRX 4 MICROOptical TV SAT receiver with universal legacy 4SAT+TV+FM outputs, SC/APC optical connectorOptical input: 1 SC/APCOutputs: 4 SAT (HL,VL,HH,VH) + 1 TVOptical inputConnector: SC/APCWaveLength nm: 1290-1580Optical return loss dB: >45Max optical input power dB: -8RF OutputsFrequency band MHz: 87-862/950-2150Connectors Type: F femaleReturn loss dB: -10Output level TV-8dBmo(40Mux) dBµV: 78-8dBmo(16Mux) dBµV: 82-8dBmo(8Mux) dBµV: 85-14dBmo(40Mux) dBµV: 68-14dBmo(16Mux) dBµV: 72-14dBmo(8Mux) dBµV:75Output level SAT-8dBmo dBµV: 82-14dBmo dBµV: 70FeaturesPower supply: Vac/HzConsumption W: 2.5Current consumption mA, V: 180, 12Power supply V: 14/18 on all outputsOperating temperature °C -5 – +50Leds dBµV: Power status green LEDStandard conformity: 2014/53/UE, 2011/65/UEDimensions mm: 120x100x30
