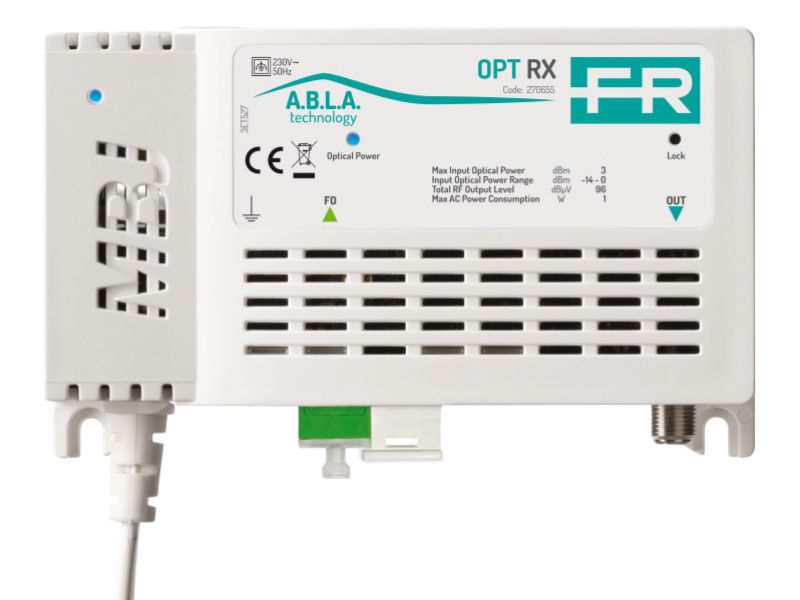

FRACARRO OPT-RX Fibre Receiver
SKU: 270655
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
OPT RXMain features:OPT-MBJ optical receiver with a wide band RF output for the reception of TV + SAT signals distributed on a single fibre.Optical input range
Description & specs
OPT RXMain features:OPT-MBJ optical receiver with a wide band RF output for the reception of TV + SAT signals distributed on a single fibre.Optical input range between 0 and -15dBm; optical operating window 1270-1610nm (dimensions 135x82x39mm)Description: OPT RXOptical input:1 SC/APCOutputs: 1 (TV + SAT)Optical inputConnector: SC/APCWaveLength nm : 1270-1610Optical return loss : dBMax optical input power: dB 0RF OutputsFrequency band: MHz 88-862/950-2150Connectors: Type F femaleReturn loss: dB-7Output level TV-8dBmo(40Mux) dBµV: 98 (total)-8dBmo(16Mux) dBµV: 82 (@Mux)-8dBmo(8Mux) dBµV: 74 (@TP)-14dBmo(40Mux) dBµV-14dBmo(16Mux) dBµV-14dBmo(8Mux) dBµVOutput level SAT-8dBmo: dBµV-14dBmo: dBµVFeaturesPower supply: Vac/Hz 230, 50-60Consumption: W 1.5Current consumption: mA, VPower supply: VOperating temperature °C: -10 – +55Leds: dBµV Blu on / Optical level in the correct range, Lock RF signal
