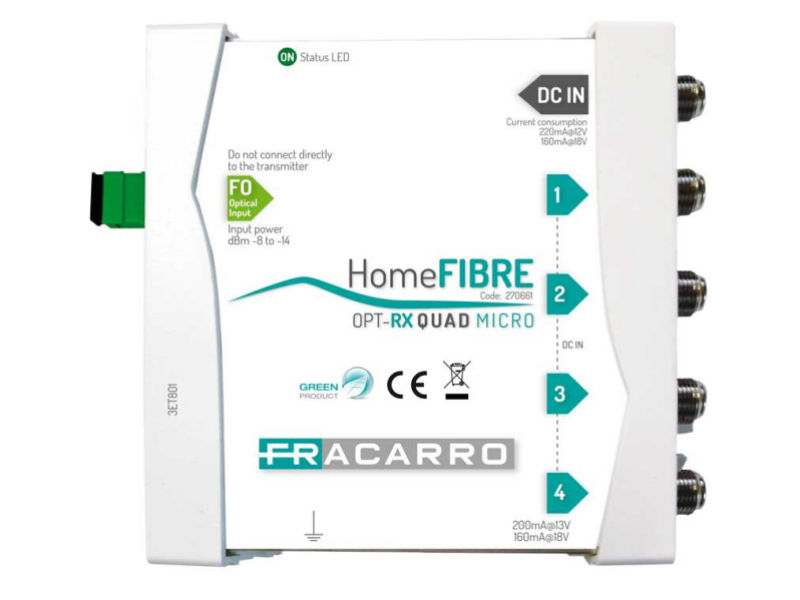

FRACARRO OPT-RX-QD Fibre Receiver
SKU: 270661
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
OPTRX QD MICROOptical TV SAT receiver with universal legacy 4SAT+TV+FM outputs, SC/APC optical connector DescriptionOptical input: 1 SC/APCOutputs: 4 TV + SAT u
Description & specs
OPTRX QD MICROOptical TV SAT receiver with universal legacy 4SAT+TV+FM outputs, SC/APC optical connector DescriptionOptical input: 1 SC/APCOutputs: 4 TV + SAT universalOptical input Connector: SC/APCWaveLength nm: 1290-1580Optical return loss dB: >45Optical input power dB: -8 to -14dBmRecomended split ratio 1:32 RF OutputsFrequency band MHz: 87-862/950-2150Connectors Type: F femaleReturn loss dB: -10Output level TV-8dBmo(40Mux) dBµV: 72-8dBmo(16Mux) dBµV: 76-8dBmo(8Mux) dBµV: 79-14dBmo(40Mux):dBµV: 60-14dBmo(16Mux) dBµV: 64-14dBmo(8Mux): dBµV: 67 Output level SAT-8dBmo dBµV: 68-14dBmo dBµV: 56FeaturesPower supply: Vac/HzConsumption W: 2.8Current consumption mA, V: 200, 12Power supply V: 14/18 on all outputsOperating temperature °C: -5 – +50Leds dBµV: Power status green LEDStandard conformity: 2014/53/UE, 2011/65/UEDimensions mm: 120x100x30
