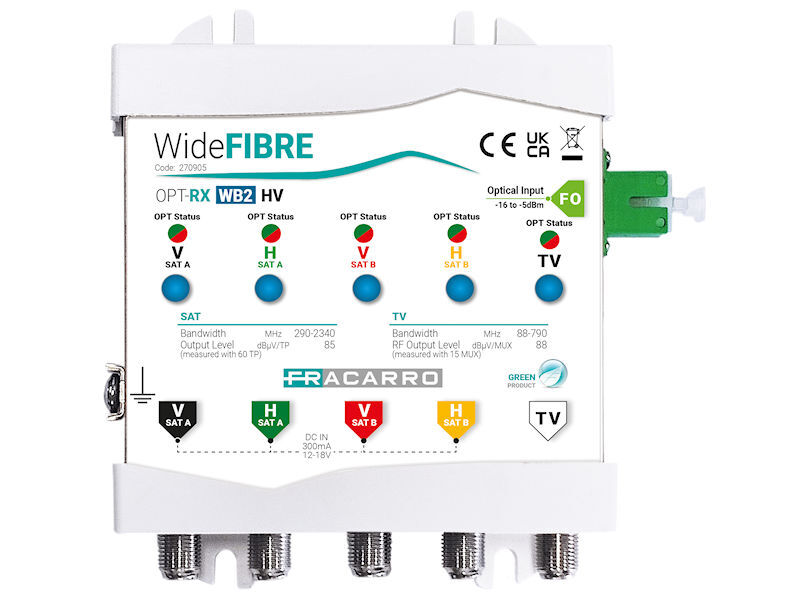

FRACARRO OPT-RX WB2 HV Fibre Receiver

Wide Fibre receiver which converts the optical signal coming from the OPT-TX WB2 transmitter to coaxial; it has 5 outputs: 4 wideband satellite polarities (V SatA, H SatA, V SatB and H SatB) and the TV signal.The Wide Fibre solution allows you to transport the signals of one satellite dish and the entire TV band, including FM and DAB radio signals.They are equipped with 5 separate photodiodes that can manage the 4 wideband polarities and the TV signal separately and use the Coarse Wavelength Division Multiplexing (CWDM) technology to demix the different wavelengths.Main Features:Wideband optical receiver with double satellite outputs (V SatA, H SatA, V SatB and H SatB) and separate TV, DAB and FM signalExtremely reduced sizeIntegrated AGC for maximum stability of the RF output signalStatus LEDs for each output for quick diagnosticsExtended optical input range (-5dBm to -16dBm) for maximum quality with up to 1x64 optical splittingDedicated optical wavelength for each satellite wideband polarity and TV bandThe optical receiver feeds through the coaxial output connectorsRecommended auxiliary power supply: PSU1508F (287760) or PSU1215FA (code 287551) in the UK
