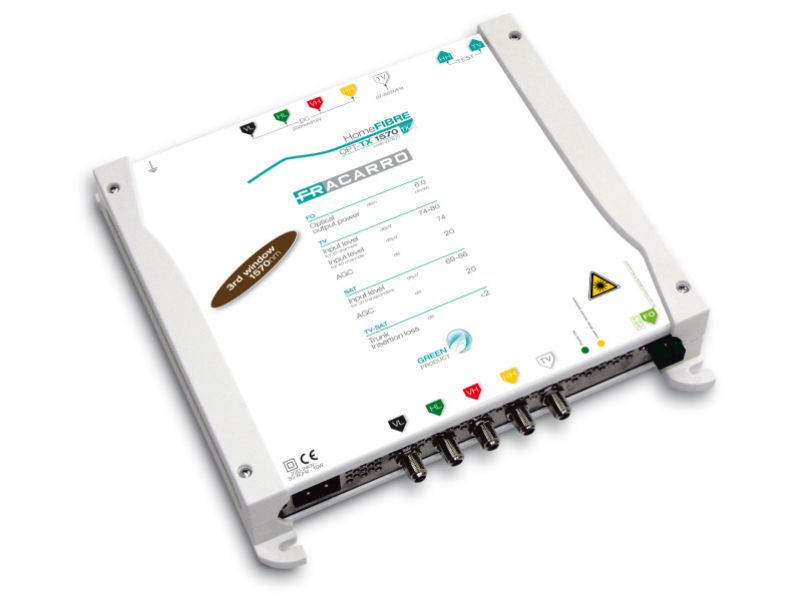

FRACARRO OPT-TX 1570nm Fibre Transmitter

Innovative solution that allows you to transmit the entire TV band, including radio signals, and an entire orbital position on a single fibre. Optical transmitter suitable for CWDM (Coarse Wavelength Division Multiplexing) technology for the distribution of up to 4 orbital positions on a single fibre. Wavelength 1570nm, DFB at 7dBm (dimensions 230x230x50mm)DescriptionInputs: 5 (4 SAT + 1 TV)Outputs: 7 (4 SAT + 1 TV + 2 TEST)Optical Output: 1 SC/APCSat InputFrequency band MHz: 950-2150Connectors: F femaleReturn loss dB: 10Trunk insertion loss dB: <2Input level dBµV: 69-86TV InputFrequency band MHz: 87-862Connectors: F femaleReturn loss dB: 10Trunk insertion loss dB: 1Input level dBµV: 80 @10 chTest outputFrequency band MHz: 87-862 / 950-2150Connectors: F femaleReturn loss dB: 10Test attenuation dBµV: 59 per channelOptical OutputConnectors: SC/APCWaveLength: 570Optical power dB: 6.5Optical return loss dBµV: >45Safety class: 1MFeaturesPower supply Vac, Hz: 184-264, 50-60Consumption W: 15Remote feeding mA, V: 200, 14 (4 SAT connectors)Operating temperature °C: -5 – +55AGC Dynamic dB: 20Leds dBµV: Red laser overcurrentStandard conformity: CEI EN 50083-2 EN60065Dimensions mm: 230x230x50
