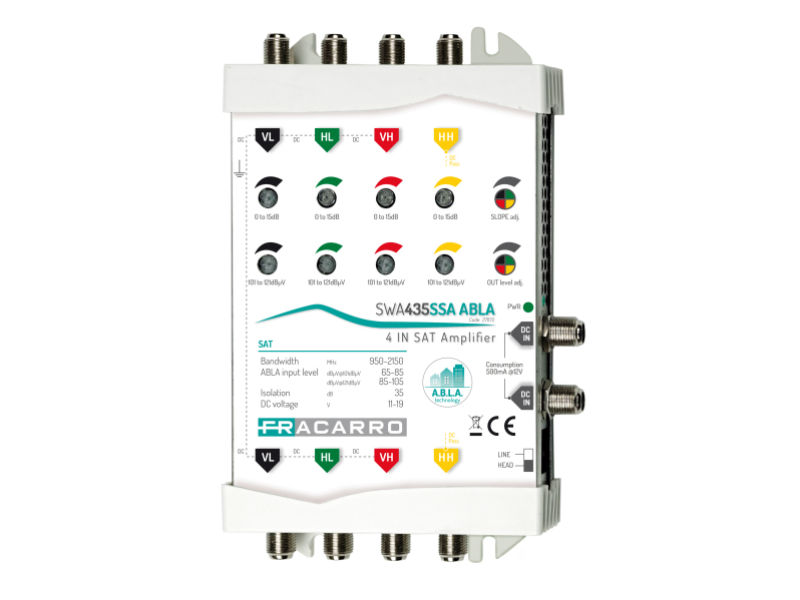

FRACARRO SWA435SSA Satellite 4x Line Amp

Head amplifier (AMP) or line amplifier (SWA) with 4 SAT inputs; output level adjustment with A.B.L.A. technology (SA and SSA models) and slope adjustment (SSA model) for each SAT inputWith A.B.L.A. technology (Automatic Building Level Adjustment), the amplifier maintains the set up output level also when input signal power variesLEDs A.B.L.A. turn on when automatic output level adjustment is properly working; if input level is too low, the LED turns off and the product became a common SAT amplifier with maximum gain (36dB) adjustable (20dB)External PSU1214 (12V, 1450mA) included on AMP packaging,optional on SWA modelsMain features:High SAT output level (121dBμV) and optimum inputs isolation (35dB)Ideal for medium and big installation or where there are long cable drops between the switchesExternal PSU1214 (12V, 1450mA) included on AMP packaging, optional on SWA modelsRemotely fed through SAT lines 1 (VL), 2 (HL) and 3 (VH) or using the DC connector placed on the right side; the same product can thus be used both as head amplifier and as line amplifierHH SAT line DC pass and current pass from DC port to the top and also to the bottom part of the system, short circuit protected and dip-switch controlled on the right side of the productDouble PSU port to offer an higher system strength, with overcurrent protection on DC portsEasy to install, thanks to new adjustment trimmers and standard colour coding
