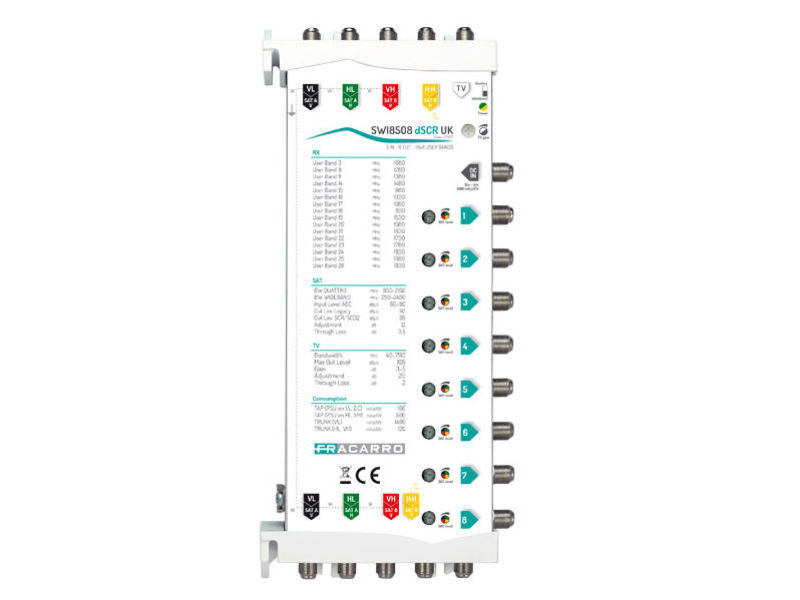

FRACARRO SWI8508 dSCR Adj. Multiswitch

Cascadable 5-input SCD2 (dCSS) multiswitches, CAGC and 8 taps with 16 frequencies each, powered entirely by decoder.DescriptionInputs: 4 SAT, 1 TVTaps: 8 to serve up to 8 Legacy users, 32 SCR users or 128 SCD2 (dCSS) usersSATBandwidth MHz: HVHV: 950-2150; Wideband 250-2400AGC dBµV: 60-90Max output level (per mux) dBµV: Legacy: 92, SCR/SCD2 (dCSS): 95Gain adjustment dB: 12Insertion loss dB: -3.5SAT-SAT Isolation dB: >25TVBandwidth MHz: 40-790Gain dB: 3-5Max output level (-35dBc 2 tone) dBµV: 105Gain adjustment dB: 20Insertion loss dB: -2TapBandwidth SAT MHz: 950-2150Bandwidth TV MHz: 0-790SCR Frequencies MHz: 980, 1030, 1080, 1130 MHz, 1280, 1380, 1480, 1530 MHz, 1580, 1630, 1680, 1730 MHz, 1780, 1830, 1880, 1930 MHz, (responding to SKY UK commands)ConsumptionTap consumption mA@13V: PSU su DC-IN o VL: 100; PSU su HL o VH: 420Current consumption mA@13V: PSU su DC-IN o VL: 1400; PSU su HL o VH: 120; HH passPower supply V: 12-18FeaturesDimensions mm: 260x109x50Operating temperature °C: -10÷+55
