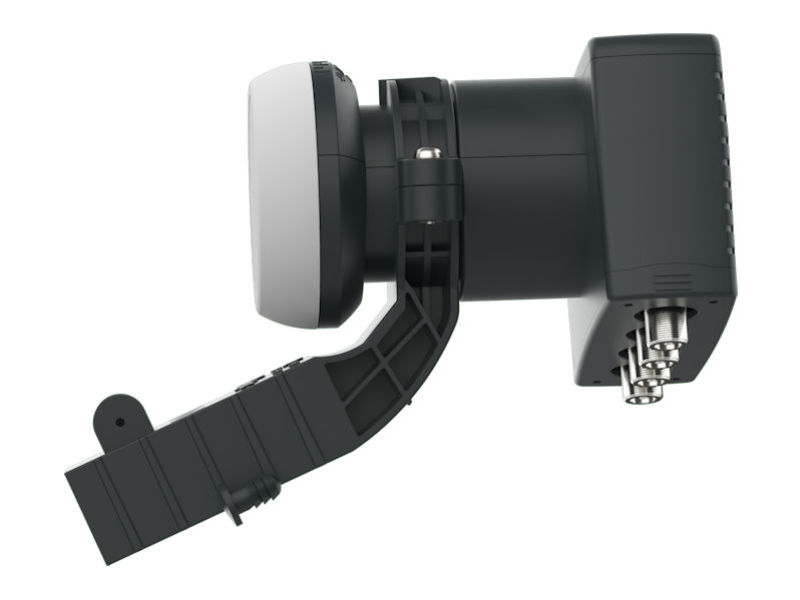

GEOSYNC SKY / Freesat Quad LNB

The GeoSync GK4LB is a Universal Quad LNB designed to work with any satellite broadcasting in the Ku Band and standard satellite receivers. Compatible with Sky-HD+, Sky+, Freesat HD+ and Freesat+ as well as European broadcasts in the Ku band.Please note: due to the LNB Holder depth this LNB is not compatible with Triax dishesMain features:4 outputs allow you to feed signals to up to 4 satellite receivers or 2 PVR’sFitted with a bracket with spirit level for Mk. 4 elliptical dishesWide neck helps align at the focal point of the dish.Skew angle guide helps align on Sky or Freesat in the UKSignal quality improved with patent feedhorn designPull-down weather shield keeps rain away from cable connectionsTechnical Specification:Input Frequency Range:Low Band 10.7-11.7GHzHigh Band 11.7-12.75GHzInput Feedhorn:Optimised for offset dish 40mm dia.Output Frequency Range:Low Band 950-1950MHzHigh Band 1100-2150MHzOutput VSWR:Typical 950-2150MHz 2.0:1 MaxOutput type/impedance:F-Connector female 75 OhmLocal Oscillator Frequency:Low Band 9.75GHzHigh Band 10.6GHzLocal Oscillator Stability:Typical @ 25ᵒC ±0.03MHzPhase Noise @:1kHz @ 25ᵒC 75dBc/Hz10kHz @ 25ᵒC 85dBc/Hz100kHz @ 25ᵒC 91dBc/HzConversion Gain:Typical @ 25ᵒC 55-60dBGain Flatness:Typ. over any 26MHz Band ±0.5dBNoise Figure:Typical 0.5dBCross Polar Isolation:Typical 25dBImage Rejection:Typical 40dBCurrent Consumption:Maximum 180mAOperating Voltages and Control Signals:Ca Vertical 10.5-14.5VDCCb Horizontal 15.5-20.0VDCCc High ON / Low OFF 22kHz/0kHz
