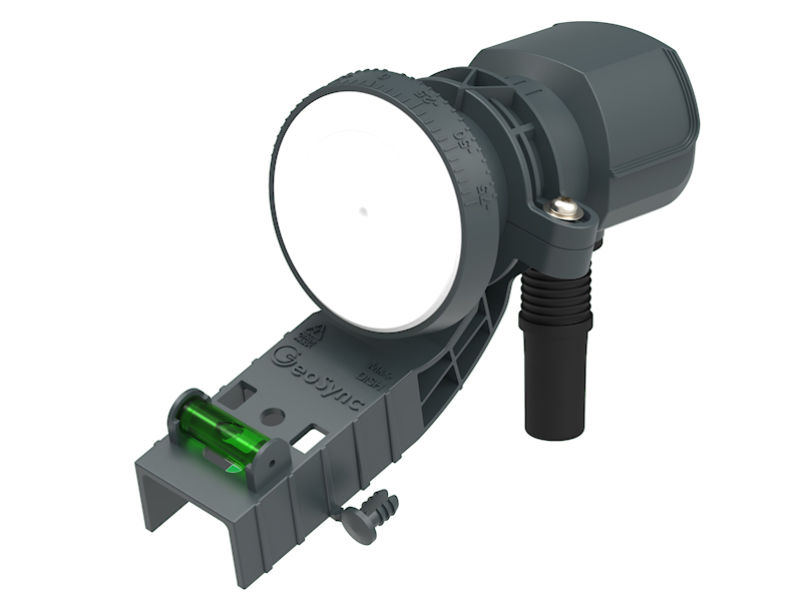

GEOSYNC Universal Single 40mm LNB

*Please note due to the LNB Holder depth this LNB is not compatible with Triax dishes *The GK1LB is a Single output LNB with Universal switching compatible with satellite broadcasts using the Ku Band when connected to a standard or HD satellite receiver.Fitted with a bracket for the popular Mk.4 elliptical dishes used in the UKSpirit level helps ensure that the dish is mounted correctlyLarge arrow on top of bracket helps align the LNB at the same skew angle as the satellitePatented feedhorn design improves signal focusingWeather-boot protects electrical connection from the elementsFitting instructions includedTECHNICAL SPECIFICATION:Input Frequency RangeLow Band: 10.7-11.7GHzHigh Band: 11.7-12.75GHzInput Feedhorn Optimised for offset dish40mm dia.Output Frequency RangeLow Band: 950-1950MHzHigh Band: 1100-2150MHzOutput VSWRTypical 950-2150MHz: 2.5:1 MaxOutput type / impedanceF-Connector female / 75 OhmLocal Oscillator FrequencyLow Band: 9.75GHzHigh Band: 10.6GHzLocal Oscillator StabilityTypical @ 25ᵒC ±0.001GHzPhase Noise1kHz @ 25ᵒC -60dBc/Hz10kHz @ 25ᵒC -75dBc/Hz100kHz @ 25ᵒC -90dBc/HzConversion GainTypical @ 25ᵒC: 55-65dBGain FlatnessTyp. over any 26MHz Band ±0.75dBNoise FigureTypical 0.8dBCross Polar IsolationTypical 20dBImage RejectionTypical 40dBCurrent ConsumptionMaximum 120mAOperating Voltages and Control SignalsCa Vertical: 10.5-14.5VDCCb Horizontal: 15.5-21.0VDCCc High ON/ Low OFF: 22kHz/0kHz
