GEOSYNC Universal Twin 40mm LNB

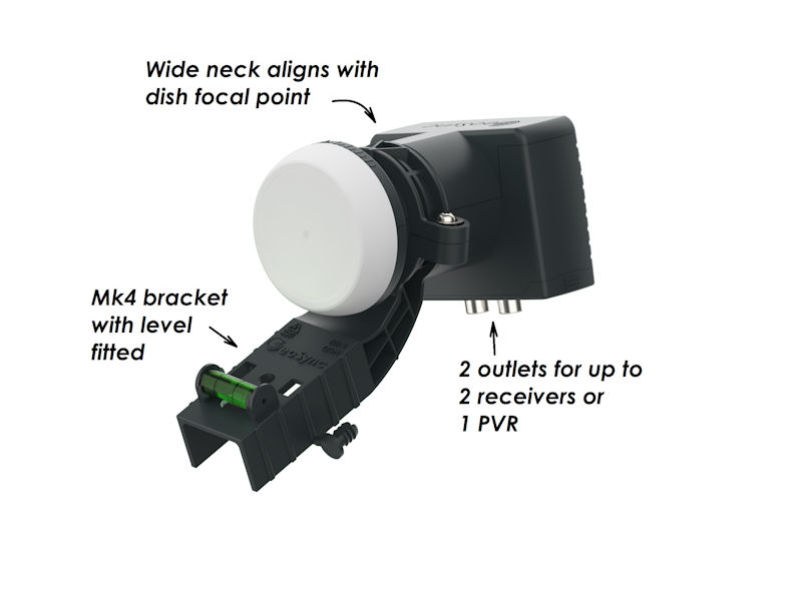

*Please note due to the LNB Holder depth this LNB is not compatible with Triax dishes *Why pay for a Quad when a Twin would do the job? The GeoSync GK2LB is a Universal LNB with two outputs designed to work with any satellite broadcasting in the Ku Band and standard satellite receivers. Compatible with Sky-HD+, Sky+, Freesat HD+ and Freesat+ as well as European broadcasts in the Ku band.Main features:2 outputs allow you to feed signals to up to 2 satellite receivers or a PVRFitted with a bracket with spirit level for Mk. 4 elliptical dishesWide neck helps align at the focal point of the dish.Skew angle guide helps align on Sky or Freesat in the UKSignal quality improved with patent feedhorn designPull-down weather shield keeps rain away from cable connectionsTechnical Specification:Input Frequency Range: Low Band 10.7-11.7GHz / High Band 11.7-12.75GHzInput Feedhorn: Optimised for offset dish 40mm dia.Output Frequency Range: Low Band - 950-1950MHz / High Band -1100-2150MHzOutput VSWR: Typical 950-2150MHz- 2.5:1 MaxOutput type / impedance: F-Connector female / 75 OhmLocal Oscillator Frequency: Low Band 9.75GHzHigh Band : 10.6GHzLocal Oscillator Stability: Typical @ 25ᵒC ±0.001GHzPhase Noise: 1kHz @ 25ᵒC -55dBc/Hz / 10kHz @ 25ᵒC -80dBc/Hz / 100kHz @ 25ᵒC -100dBc/HzConversion Gain: Typical @ 25ᵒC 55-65dBGain Flatness: Typ. over any 26MHz Band ±0.75dBNoise Figure: Typical 0.6dBCross Polar Isolation: Typical 20dBImage Rejection: Typical; 40dBCurrent Consumption: Maximum 200mAOperating Voltages and Control Signals:Ca Vertical 10.5-14.5VDCCb Horizontal: 15.5-20.0VDCCc High ON/ Low OFF: 22kHz/0kHz
