GEOSYNC Wideband LNB for SKY Q

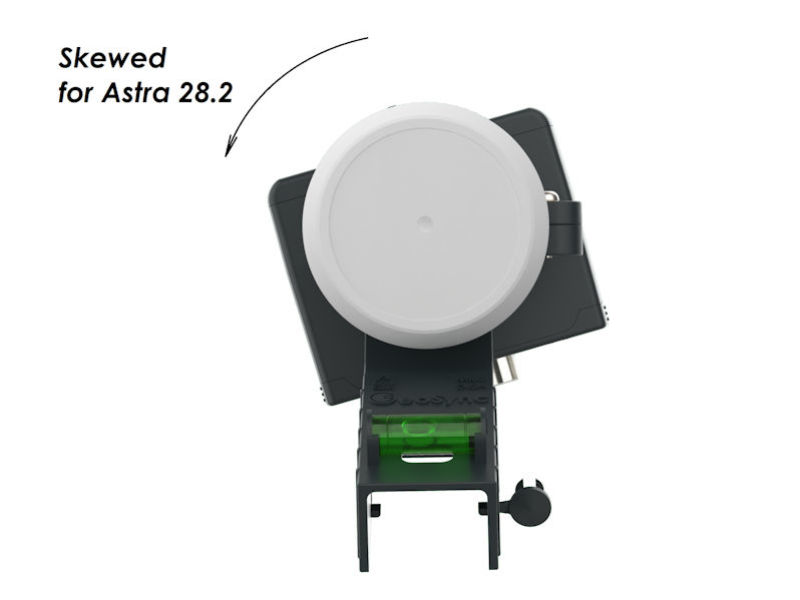

*Please note due to the LNB Holder depth this LNB is not compatible with Triax dishes *The GeoSync GW2LB Wideband LNB has been specifically designed for use in the UK with a 10.41GHz Local Oscillator to make it compatible with both the Sky-Q and Freesat 4K receivers. The GW2LB has two outlets, one carrying all of the horizontally polarized signals and the other the vertical. Both outputs need to be connected to the receiver.Main features:Fitted with a bracket with spirit level for Mk. 4 elliptical dishesWide neck helps align at the focal point of the dish.Skew angle guide helps align on Sky or Freesat in the UKSignal quality improved with patent feedhorn designPull-down weather shield keeps rain away from cable connectionsInput Frequency Range V & H 10.7 - 12.75GHzInput Feedhorn: Optimised for offset dishOutput Frequency Range: V & H 290 - 2340MHzOutput VSWR: Typical 950-2150MHz 2.0:1Output type/impedance: F-Connector female 75OhmLocal Oscillator Frequency: For UK only 10.41GHzLocal Oscillator Stability: Typical @ 25ᵒC ±1MHzPhase Noise @1kHz @ 25ᵒC -60dBc/Hz (Max)10kHz @ 25ᵒC -80dBc/Hz (max)100kHz @ 25ᵒC -90dBc/Hz (Max)Conversion Gain: Typical @ 25ᵒC 48 - 60dBGain Flatness: Typ. over any 26MHz Band ±0.5dBNoise Figure: Typical 0.6dBCross Polar Isolation: Minimum 22dBImage Rejection:Minimum 38dBCurrent Consumption: Maximum 120mARED Standard: EN 303372-1
