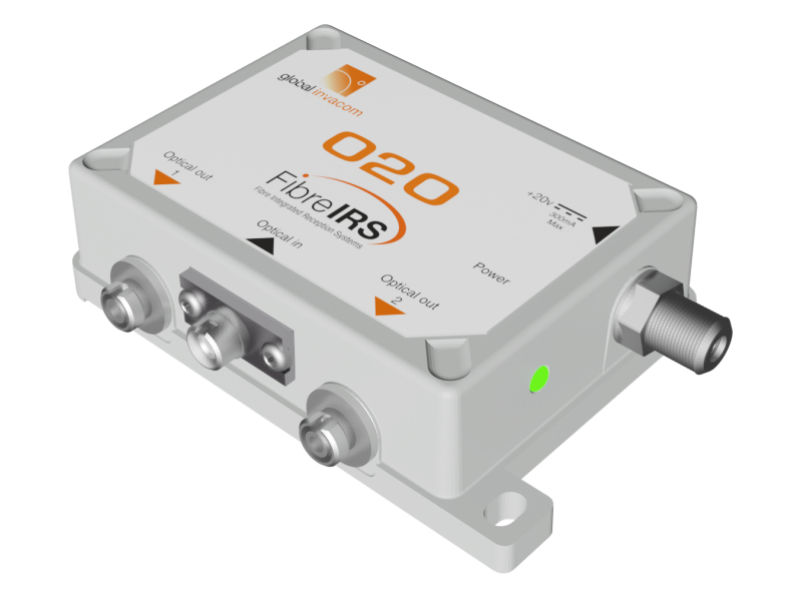

GLOBAL Fibre IRS O2O Converter

The O2O (Optical to Optical) convertor from Global Invacom is fully compatible withall the current FibreIRS headend equipment and designed for future compatibility.Replaces the functionality of the O2E and ODU32 in one compact unit.***Recomended optical input power level -7 to -10dBm******NB: Output laser frequency will be 1310nm regardless, even though it accepts both 1310nm and 1550nm input frequencies***FibreIRS FC/PC optical inputFully compatible with GI optical LNB, ODU32 & ODU32 (1550)2 x FC/PC optical outputsSpace saving designSmall form factorFM.DAB,DTT & Satellite (Optical)Optical wavelength (Input): 1100nm to 1650nmOptical input power: -12dBm -3dBmOptical output power: +7dBmReturn Loss: 20dBRF SignalRF frequency range (MHz): Min 88 / Max 5450Gain variation across band: Max 5dB *Gain ripple across 30Mhz: 1dBadditional variation can occur due to satellite transmitted signal levels.DC specificationInput voltage: 20VCurrent consumption: 150mA MaxConnectorsInput: FC/PCOutput: 2 x FC/PCPower supply: F connectorEnvironmental SpecificationOperating temperature: -10°C to +50°CStorage temperature: -40°C to +70°C
