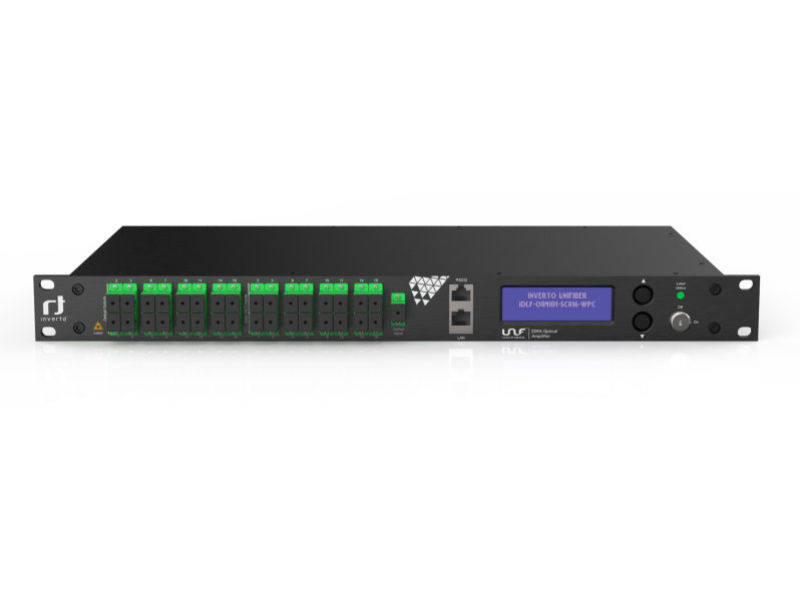

INVERTO EDFA 16x SC/APC +10dBm c/w WDM

Inverto’s Unifiber™ EDFA product range of optical amplifiers is based on state-of-the-art laser pumps and world-class 1550nm Erbium-Doped Fiber, suiting a variety of video distribution applications and including models with integrated wave length multiplexer (WDM) that can overlay 1310nm/1490nm data signals from a GPON/EPON OLT device over a single fiber port.Engineered to last, the Unifiber™ EDFA’s smart power management and thermal design ensures long lifetime, high reliability and stable performance of the laser pump. The front panel’s large LCD display provides easy to use configuration and setup menu and serves the user with operation status information and/or warning alerts whenever needed. Delivered in a 19” 1RU rack mount housing with two hot-swappable power supply units, the Unifiber™ EDFA products are easy to integrate and guarantee that your signal distribution is always on.HIGHLIGHTSLow noise, high optical output power amplifierOptical input power range -10 dBm to +10 dBm, SC/APC connectorAutomatically controlled output power, SC/APC connectorsCWDM for multiplexing GPON/EPON data signals (1310/1490nm) with the video RF optical signals (1550nm)Status LED indicators and LCD displayHigh-efficiency, hot swappable double power supply guaranteeing uninterrupted operationNetwork management interface (SNMP)TECHNICAL SPECIFICATIONSOutput optical power (per port) - +10dBm typ., +9.5dBm min.Operating wavelength - 1550 nm for the RF signals; 1310/1490 nm for the OLT signals (WDM models)Ports - 1x optical RF In 16x optical RF Out, 16x optical OLT In (WDM models)Connector type (optical in/out ports) - SC/APCInput RF power - -10 dBm ~ +10 dBmNoise Figure - 4.5 dB typ., 5.5 dB max. (@ input power 0 dBm, 1550 nm)Port uniformity - 0.5 dB max.WDM insertion loss (1310/1490 nm) - <1 dBReturn loss - >55 dBGENERALDisplay and control switch - LCD, On/Off switch, Status led: Green=OK, Red = Off / Laser errorNetwork management interface - SNMP, RJ45Serial data interface - RS232Input voltage level - 90 VAC ~ 240 VAC, 50 Hz/60 HzCurrent consumption - 0.4 A max.Input power consumption - 30 W max.Working temperature - -5°C ~ +65°CStorage temperature - -40°C ~ +80°CRelative humidity - 5% ~ 85%Chassis dimensions (WxDxH) - 19” 1RU, 483 mm × 254 mm × 44 mm
