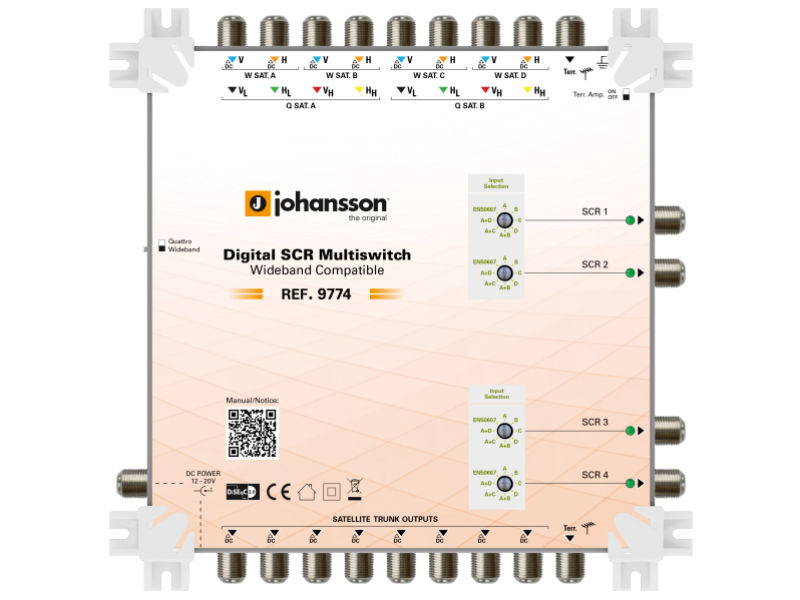

JOHANSSON 4 Way Sky Q™ Multiswitch

With the 9774, you can uniquely offer a wide range of video content in multi-dwelling units, because you can reach 4 orbital positions per SCR output. Moreover, you can select for each output a different combination of orbital positions!Main features:8 satellite + 1 terrestrial inputs, 4 SCR outputs8 satellite wideband inputs and 1 terrestrial inputCompatible with the following standards: EN50494, EN50607, BSKYBCompatible with 4 wideband LNBsCompatible with 2 Quattro LNBs4 SCR outputs with each 16 user bands1 terrestrial inputSTB should support dSCR (EN50494), dCSS (EN50607) or BSKYBInputs : SAT: 8 TERR: 1Frequency MHz: SAT: 290 - 2340 TERR: 88 - 862Input level dBµV SAT-Universal: 58 to 108 / TERR: 100 (amplified)Return loss IN/OUT: dB SAT: -10 / TERR: -10Insertion loss dB SAT: 2 TERR: 3SAT positions: Wideband: 4 / Universal: 2Supported LNB types : quattro (LO: 9750/10600) / wideband (LO:10410)SCR Outputs : 4Trunk Outputs : SAT: 8 / TERR:1dSCR channel power dBµV: 86 (AGC controlled)Output return loss dB: 10Trunk insertion loss dB: SAT.: -2 / TERR: -3TERR output loss dB: -20 or -8 (switchable)SCR channels (16 users/output): MHz Configurable between 950 and 2150Supported standards: EN50494 / EN50607 / BskyBTrunk termination DC blocked required: Ohm 75 (SAT & TERR)DC supply to SAT trunks from power adapter :V 20DC supply from SAT trunks: V 20Max LNB current /LNB: mA 500DC jack 2,1mm: V 20F con DC input: V 20DC power from output portConsumption :W 24Dimensions mm: 220 x 220 x 50Operating temperature: °C -20 to 50, indoor housing
