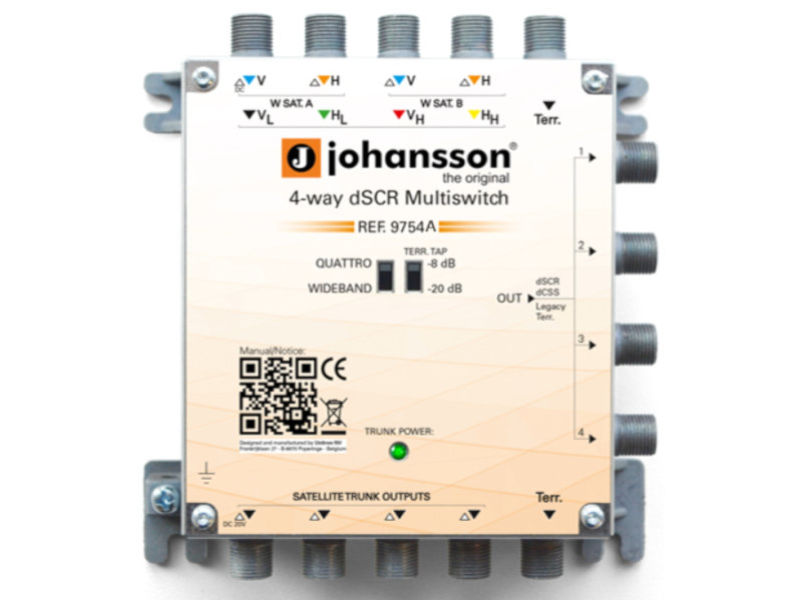

JOHANSSON 4 Way Sky Q™ Multiswitch Active
SKU: 9754A
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
State-of-the-art dSCR Multiswitch in a compact die-cast housing, optimised for installation in narrow spaces.Main features:4 satellite + 1 terrestrial inputsMul
Description & specs
State-of-the-art dSCR Multiswitch in a compact die-cast housing, optimised for installation in narrow spaces.Main features:4 satellite + 1 terrestrial inputsMulti-standard: wideband, dSCR, dCSS, legacy, terrestrial4-wayActive terrestrial amplifierOptimised performance and power consumptionCompact die-cast housing for easy installationSpecifications:Trunk inputs/outputs: SAT: 4 / TERR: 1dSCR Outputs: 4Frequency MHz: SAT: 290 - 2340 / TERR: 88 - 862Min. input level SAT dBµV: Universal LNB: 62 / Wideband LNB: 67Max. input level TERR dBµV: Amplified: 109 / Bypass: 121Trunk return loss dB: >10Trunk insertion Loss dB: SAT: 2 / TERR: 1.5SAT positions: Universal LNB: 1 / Wideband LNB: 2dSCR channel output power dBµV: 88 (AGC controlled)Output return loss dB: >10TERR tap loss dB: Bypass: 20 / Amplified: 8SCR channels (16 users/output) MHz: Between 950 and 2150Supported standards: EN 50494 (SCD) / EN 50607 (SCD 2) / BSKYB / LegacyTrunk termination DC block required Ohm: 75 (Sat & Terr)DC power via SAT trunks V: 20Consumption W: 10Operating temperature °C: -20 to +50 (indoor housing)Dimensions mm: 124 x 117 x 39
